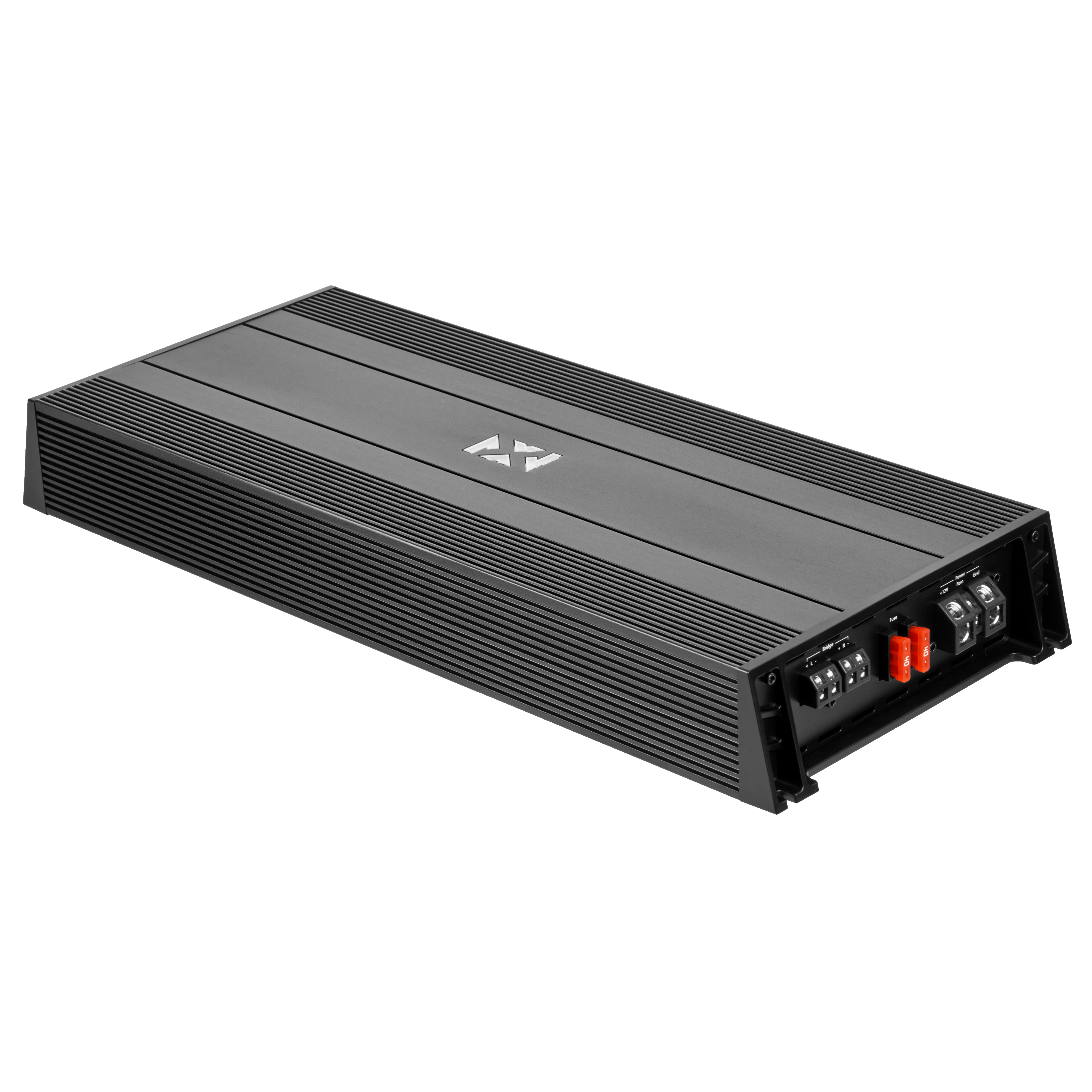

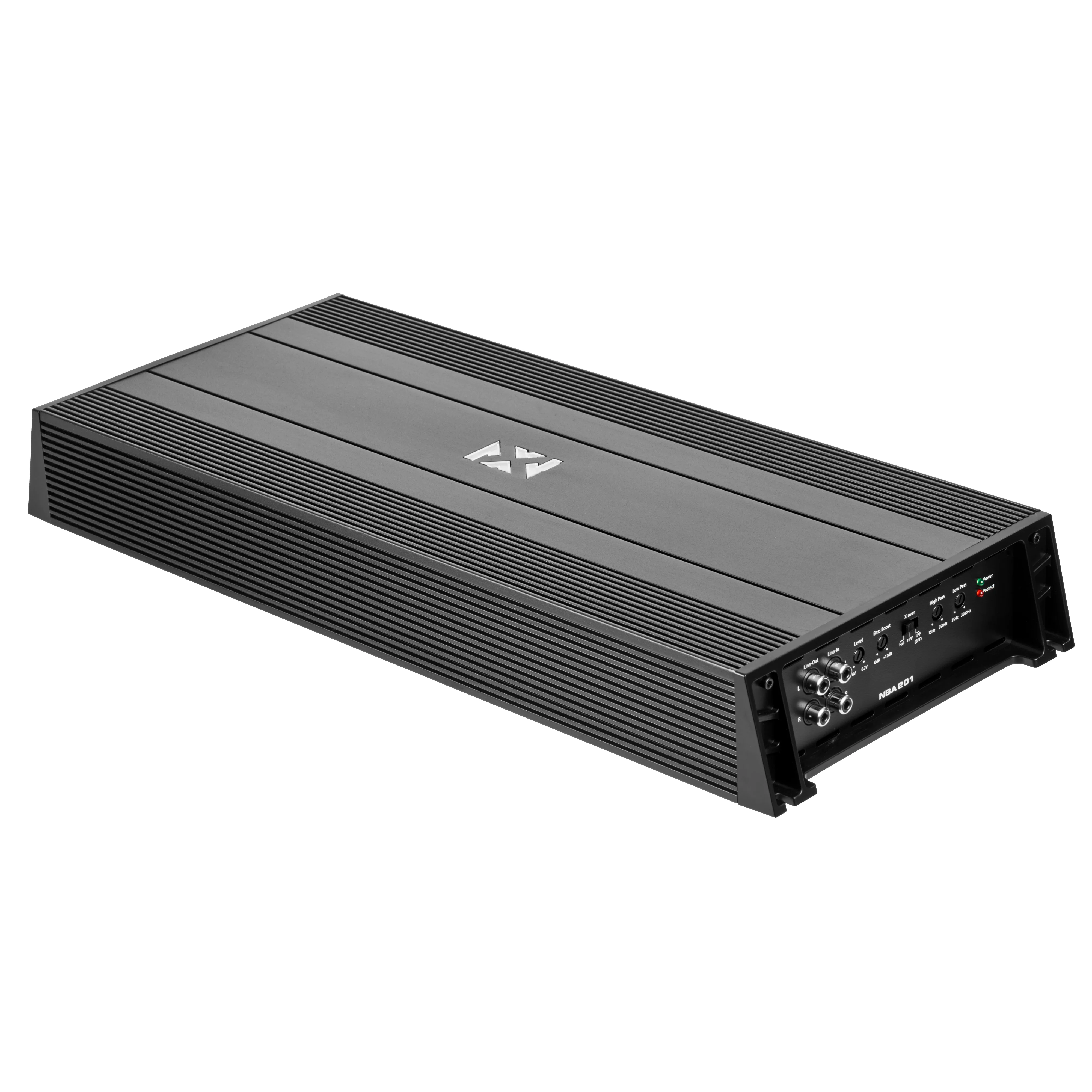

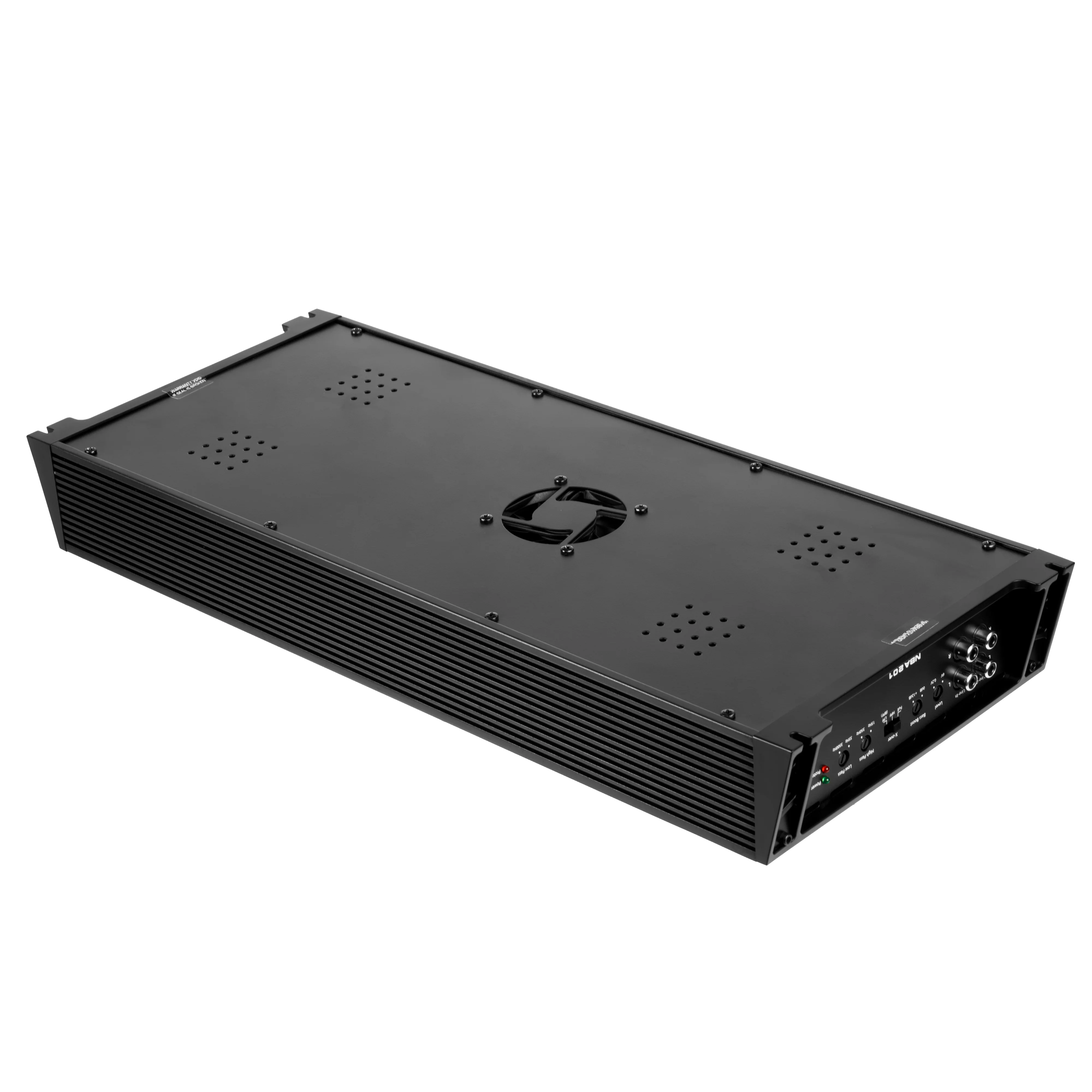

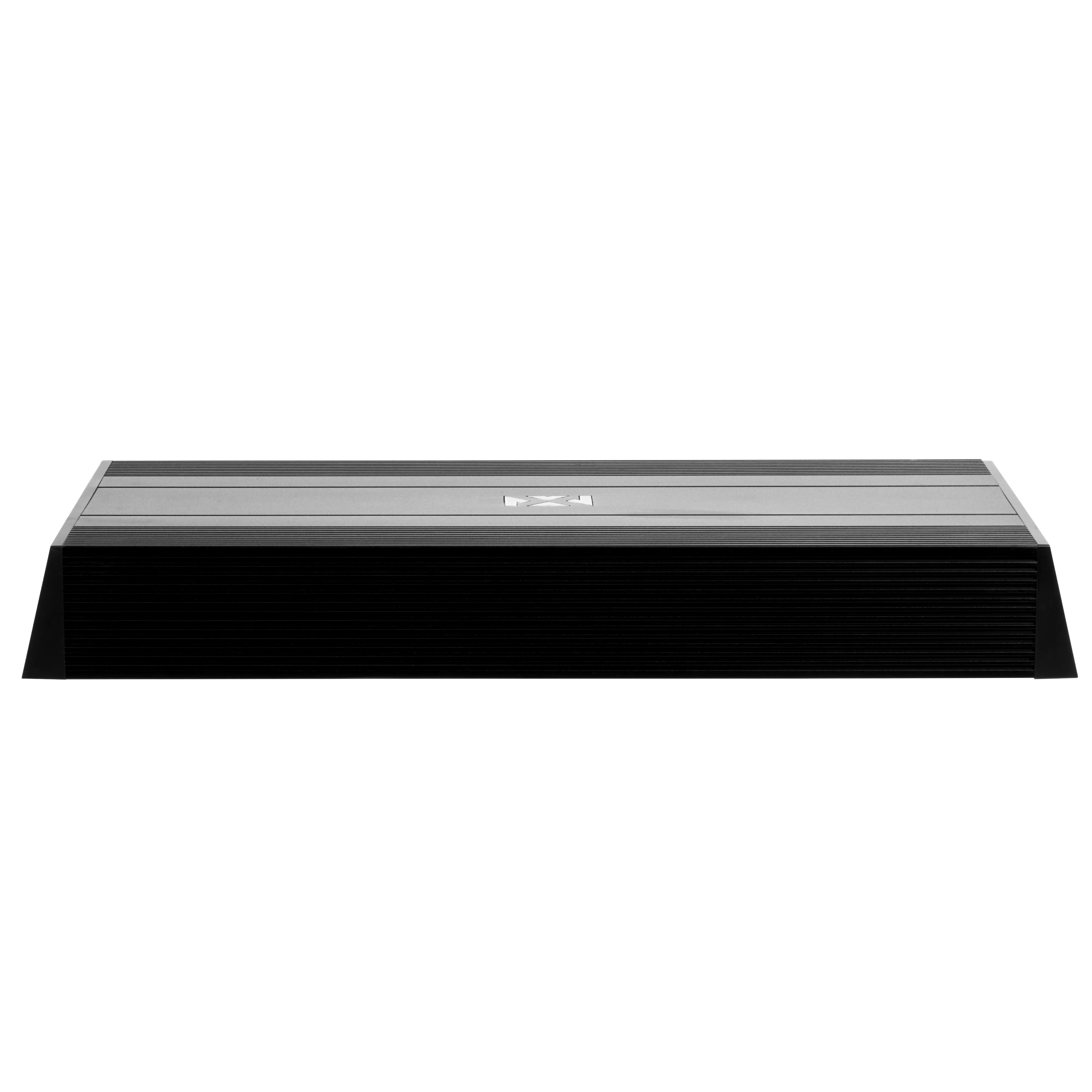

NBA201 1400W Peak (700W) RMS N-Series Class A/B 2-Channel Amplifier

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

NBA201 1400W Peak (700W) RMS N-Series Class A/B 2-Channel Amplifier

Product Details:

  • Class A/B 2 ohms Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 200 watts x 2 channel
    • 2 ohms: 350 watts x 2 channel
    • Bridged, 4 ohms: 700 watts x 1 channel
  • Total power output: 700 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

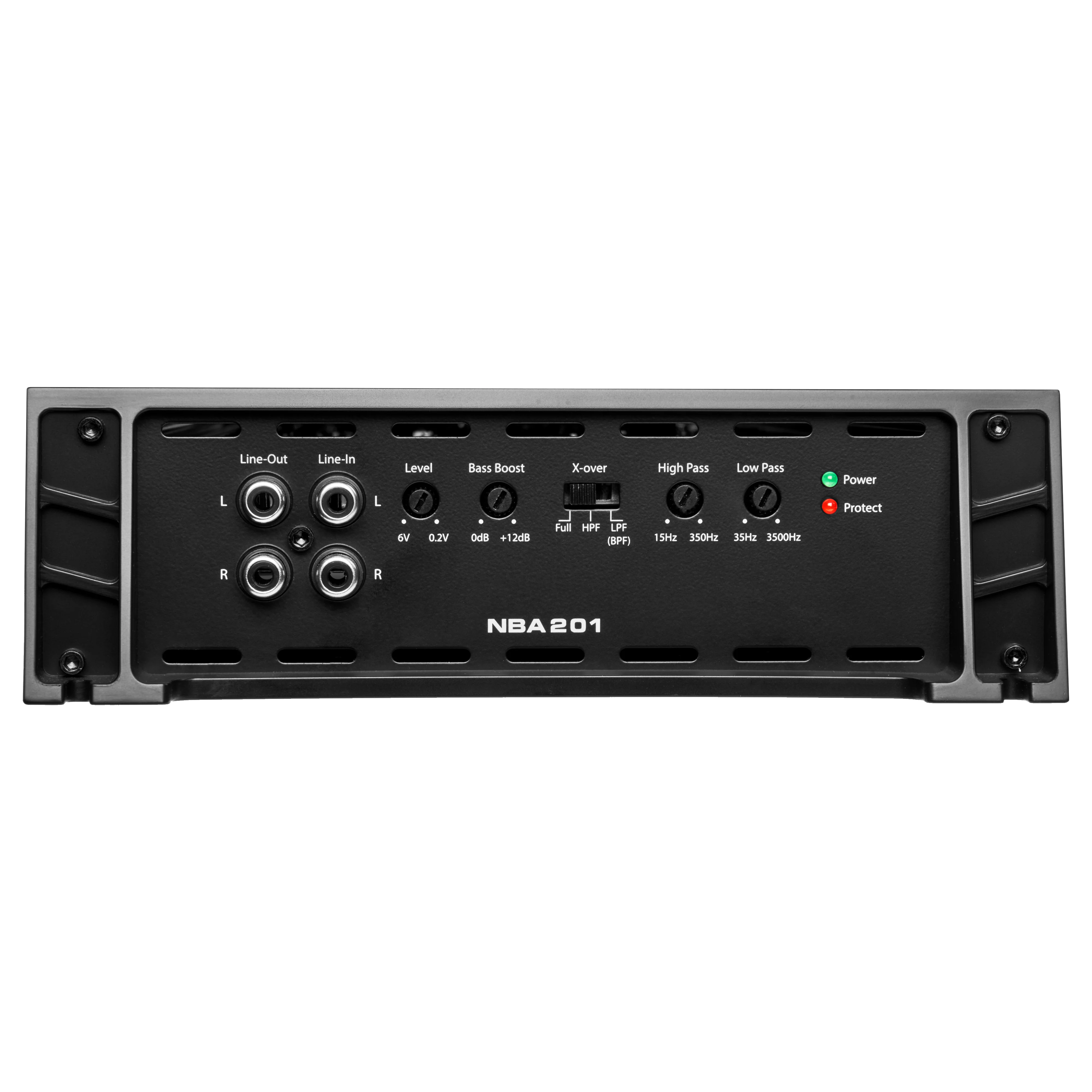

  • Input sensitivity:
    • Low level: 0.2V-6V
  • Frequency Response: 10 - 50 kHz
  • Total Harmonic Distortion (THD): 0.5%
  • Signal to Noise Ratio: 90 dB
  • Variable high-pass filter: 15 - 350 Hz, 24 dB/octave
  • Variable low-pass filter: 35 - 3500 Hz, 24 dB/octave
  • Subsonic filter: , 24 dB/octave
  • Variable Bass Boost: 0 - 12 dB bass boost at 50 Hz

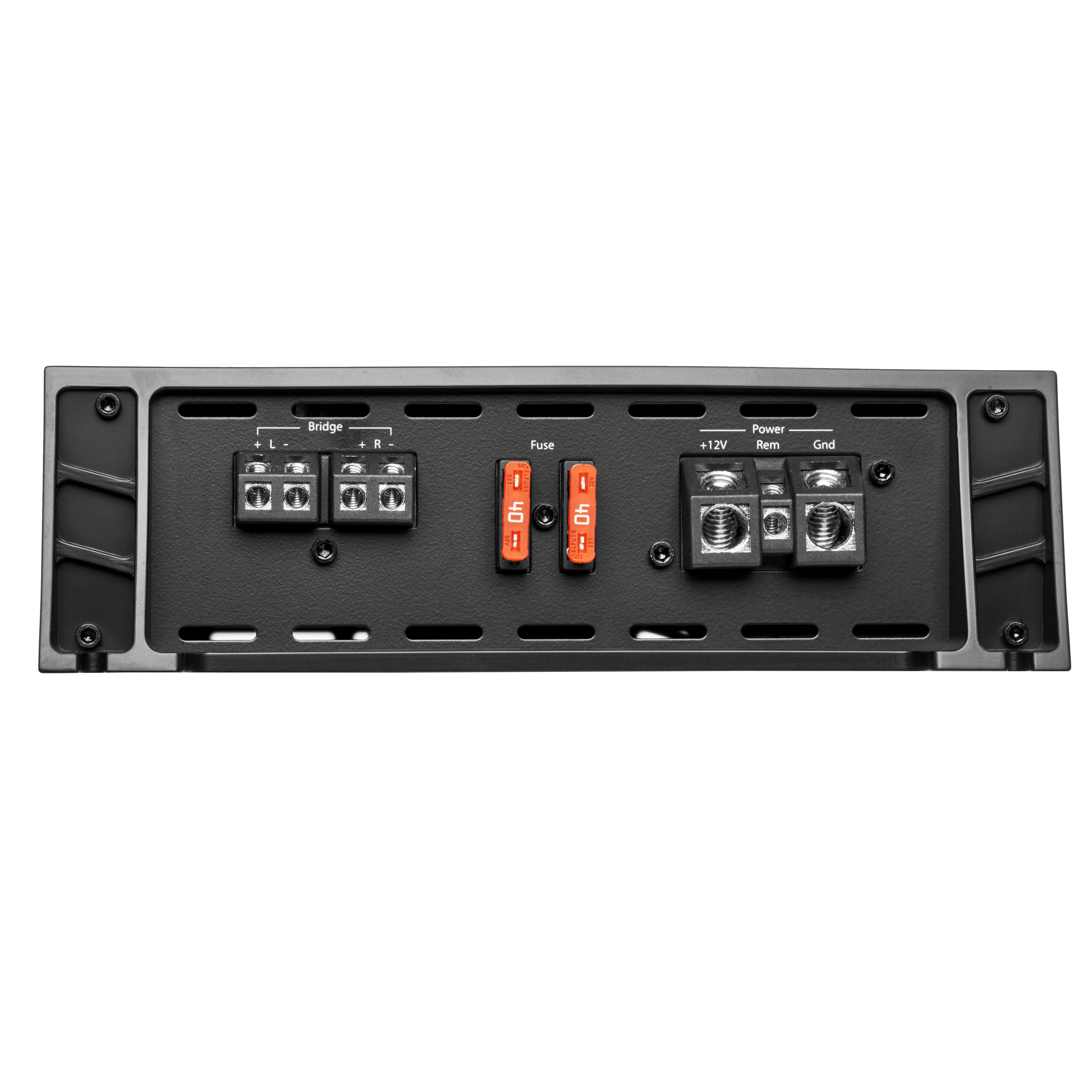

  • Fuse Rating: 40A x 2
  • 4 AWG gauge power and ground wiring are recommended for installation.
  • Dimensions: 18.9"W x 7.8"L x 2.4"H
  • 1-year Warranty from the Original Purchase Date

 N-Series owner’s manual

$99.99
NBA201 1400W Peak (700W) RMS N-Series Class A/B 2-Channel Amplifier—
$99.99

Product Information

Shipping & Returns

Description

Product Details:

  • Class A/B 2 ohms Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 200 watts x 2 channel
    • 2 ohms: 350 watts x 2 channel
    • Bridged, 4 ohms: 700 watts x 1 channel
  • Total power output: 700 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 0.2V-6V
  • Frequency Response: 10 - 50 kHz
  • Total Harmonic Distortion (THD): 0.5%
  • Signal to Noise Ratio: 90 dB
  • Variable high-pass filter: 15 - 350 Hz, 24 dB/octave
  • Variable low-pass filter: 35 - 3500 Hz, 24 dB/octave
  • Subsonic filter: , 24 dB/octave
  • Variable Bass Boost: 0 - 12 dB bass boost at 50 Hz
  • Fuse Rating: 40A x 2
  • 4 AWG gauge power and ground wiring are recommended for installation.
  • Dimensions: 18.9"W x 7.8"L x 2.4"H
  • 1-year Warranty from the Original Purchase Date

 N-Series owner’s manual
