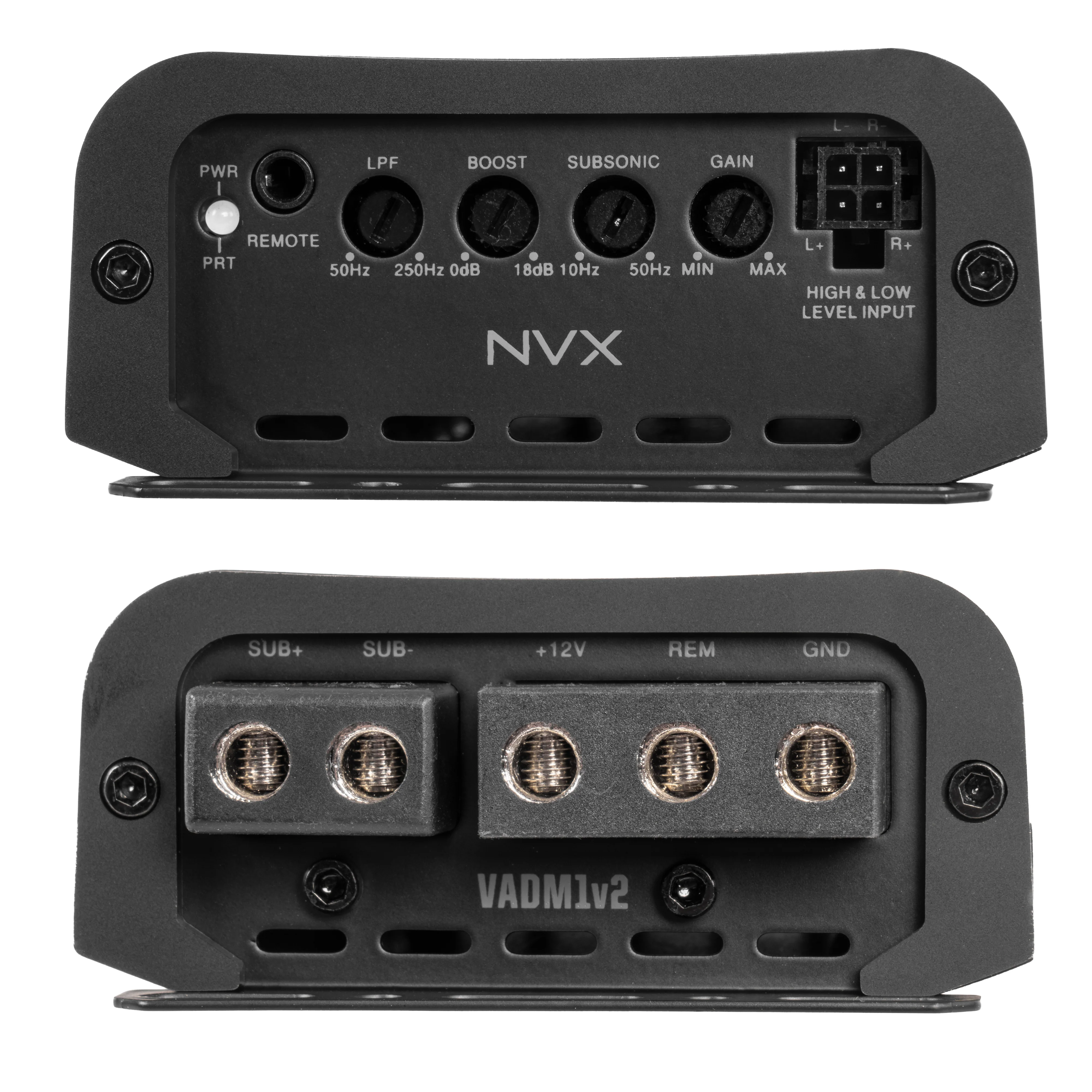

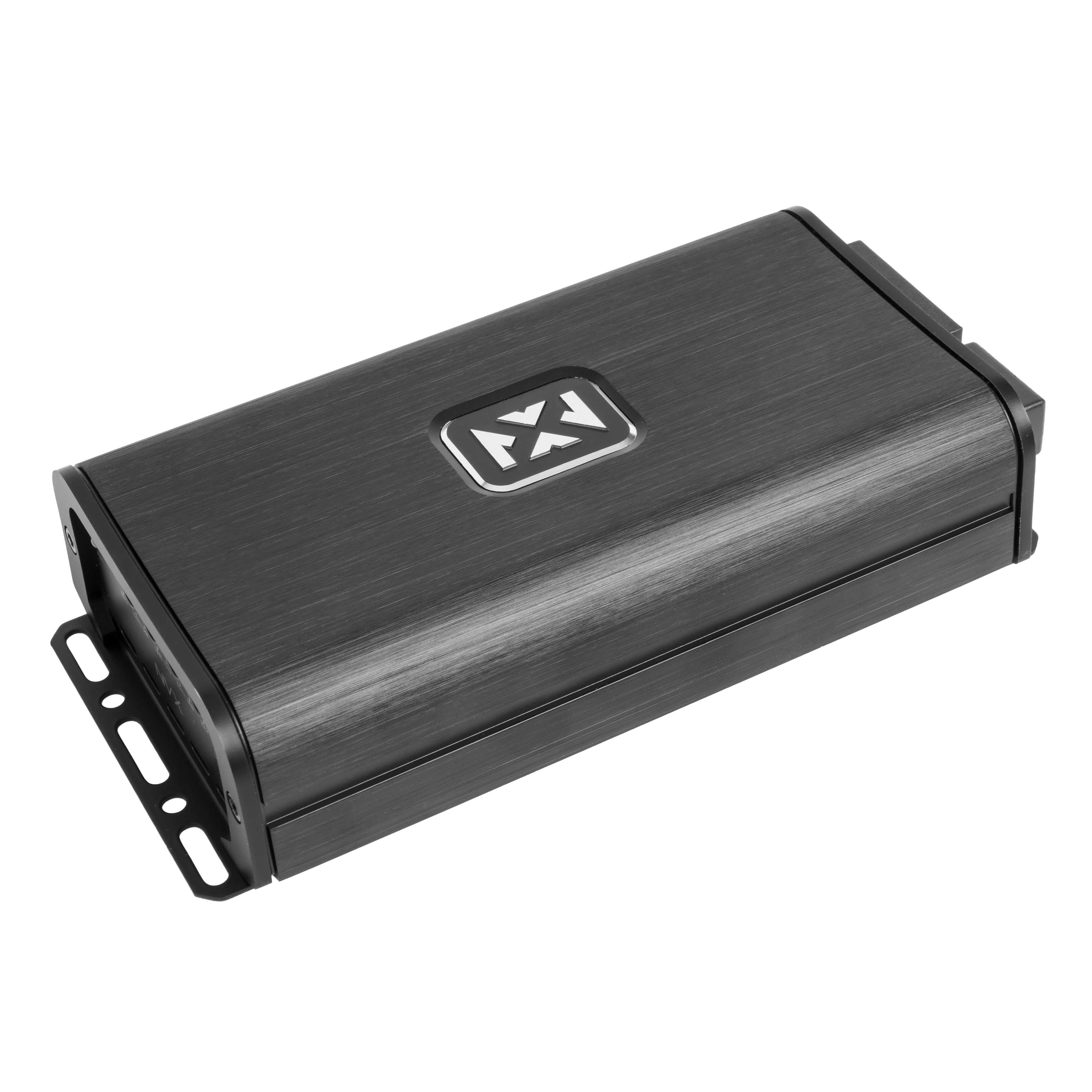

VADM1 v2 (VADM1v2) 600W RMS V-Series Micro Class-D 1-Ohm Stable Monoblock Amplifier (Marine Certified)

Product Details:

• V Series Micro Class D 1 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 240 watts x 1 channel
• 2 ohm: 400 watts x 1 channel
• 1 ohm: 600 watts x 1 channel
• Total power output: 600 watts
• LED Power/Protect Light

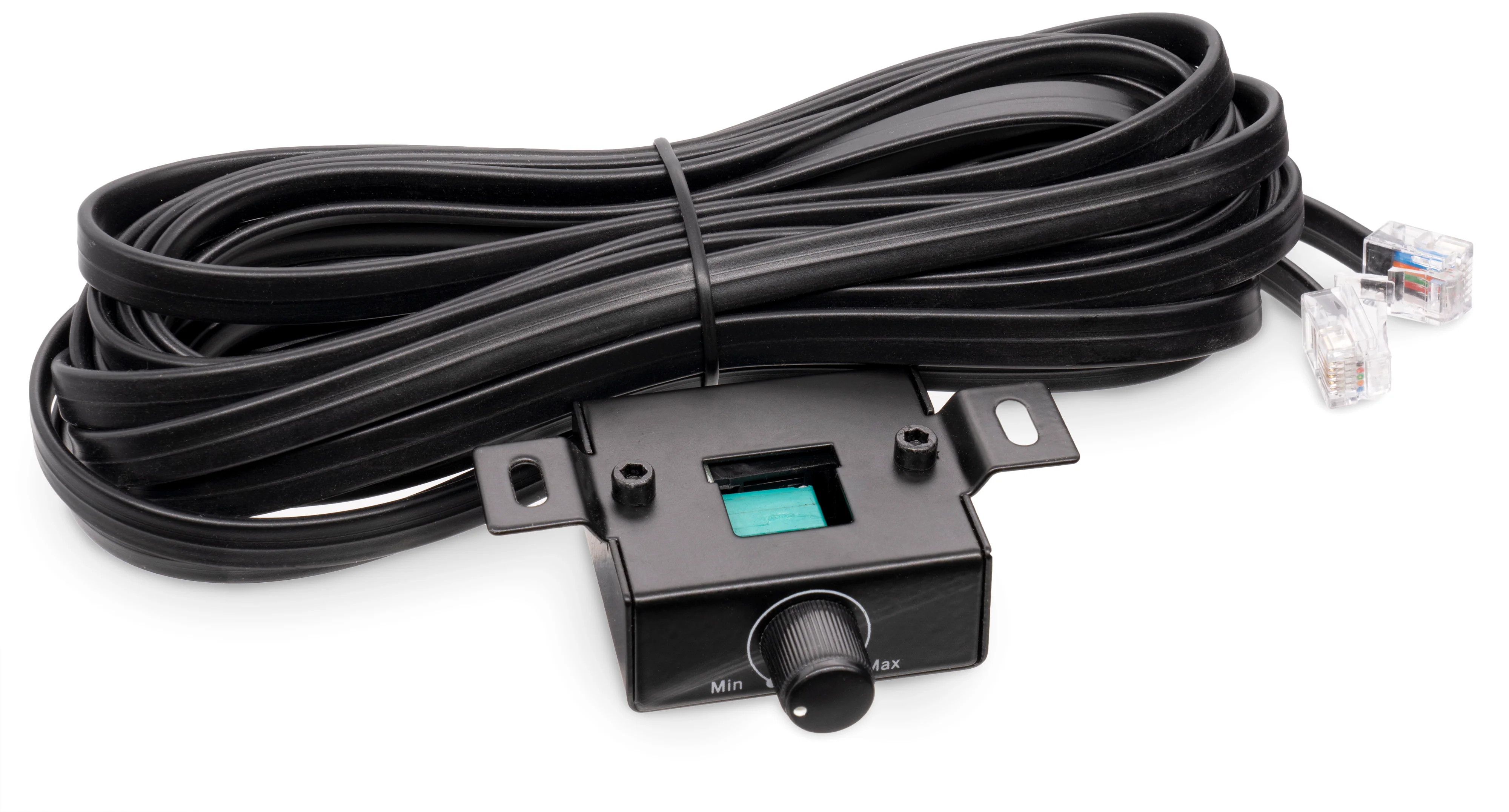

• Includes a Wired Bass Level Remote Control
• Speaker-level (high-level) inputs
• 4-way protection circuitry (thermal, overload, speaker short protection and DC offset)
• Balanced differential inputs eliminate noise picked up by signal cables
• Input sensitivity:
• Low level and High level: 0.2 - 10 volts
• Frequency Response: 20 - 500 Hz
• Total Harmonic Distortion (THD): <0.3%
• Signal to Noise Ratio: >85 dB
• Variable low-pass filter: 50 - 250 Hz
• Subsonic filter: 10 - 50 Hz
• Variable Bass Boost: 0 - 18 dB @ 45 Hz
• 8 AWG gauge amplifier wiring kit is recommended for installation

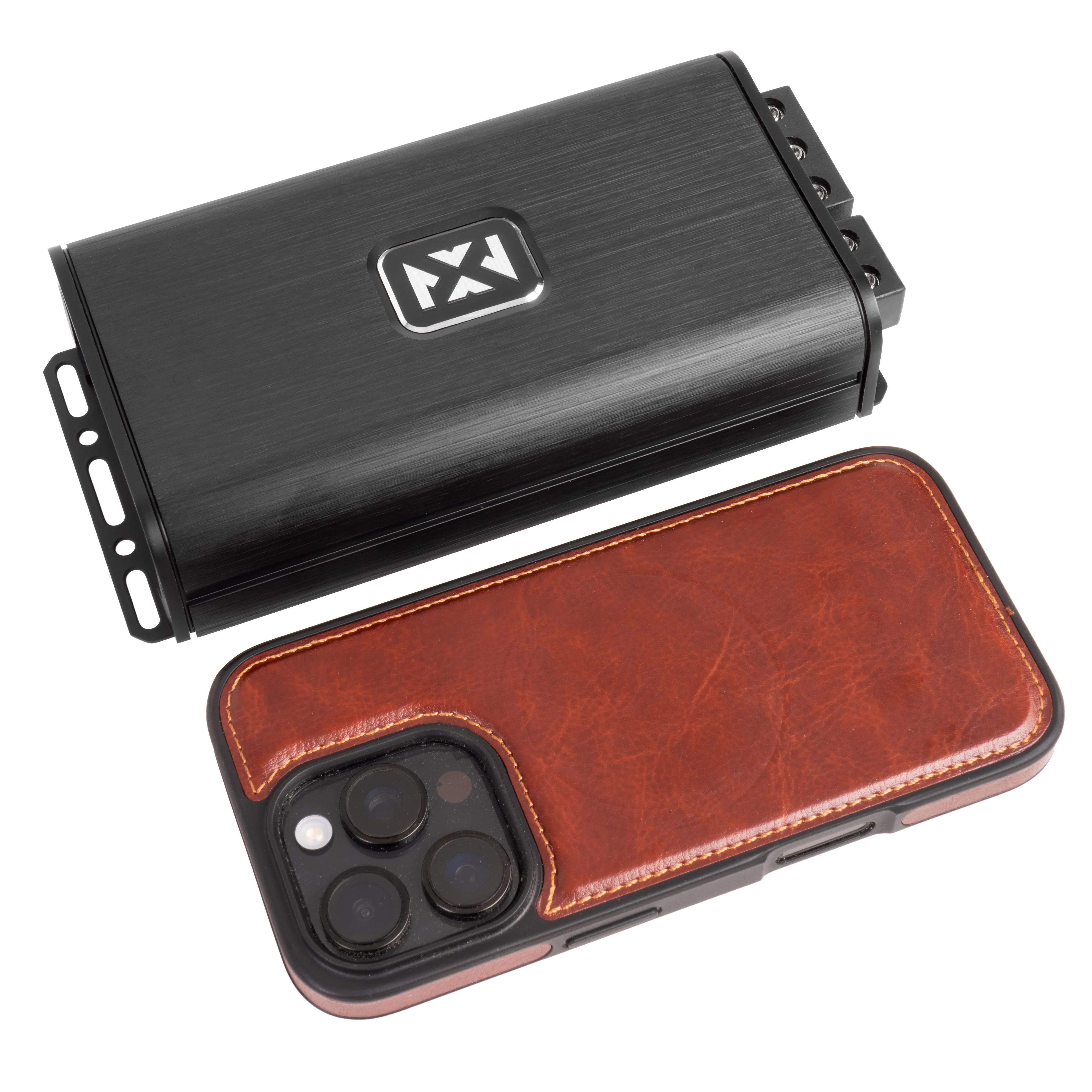

• Dimensions: 6.49" L x 3.3" W x 1.48" H
• 1-year Manufacturer's Warranty
• MFR #: VADM1v2

 VADMv2 owner’s manual
