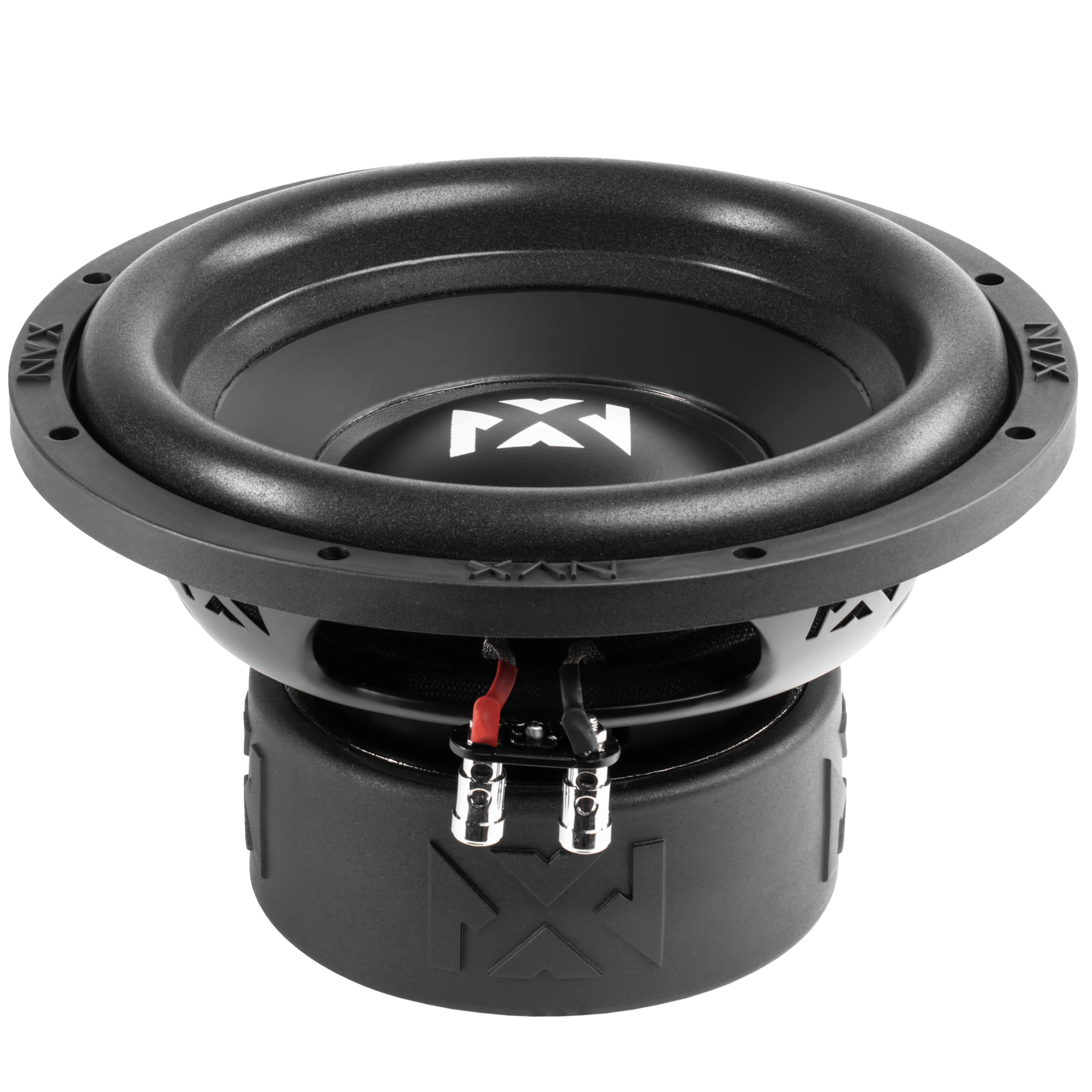

NSW102 Version 3 (NSW102v3) 1000W Peak (500W RMS) N-Series v3 10" Dual 2-Ohm Subwoofer

Product Details:

• 10" Dual 2-ohm N Series Subwoofer
• Power Handling:
  • Peak: 1000 watts
  • RMS: 500 watts
• 12.5 mm Xmax
• Enhanced Pressed Paper Cone

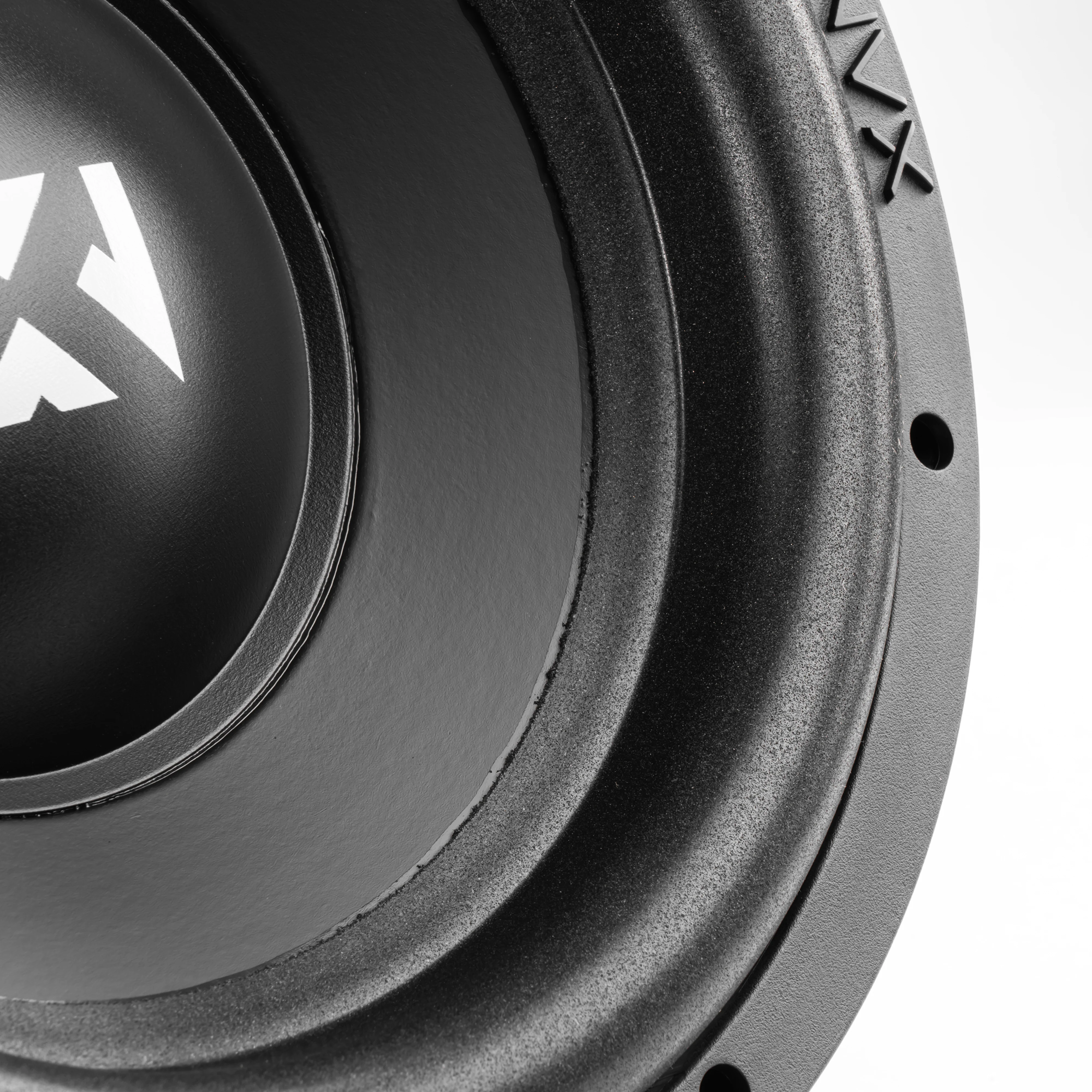

• High-Roll Foam Surround

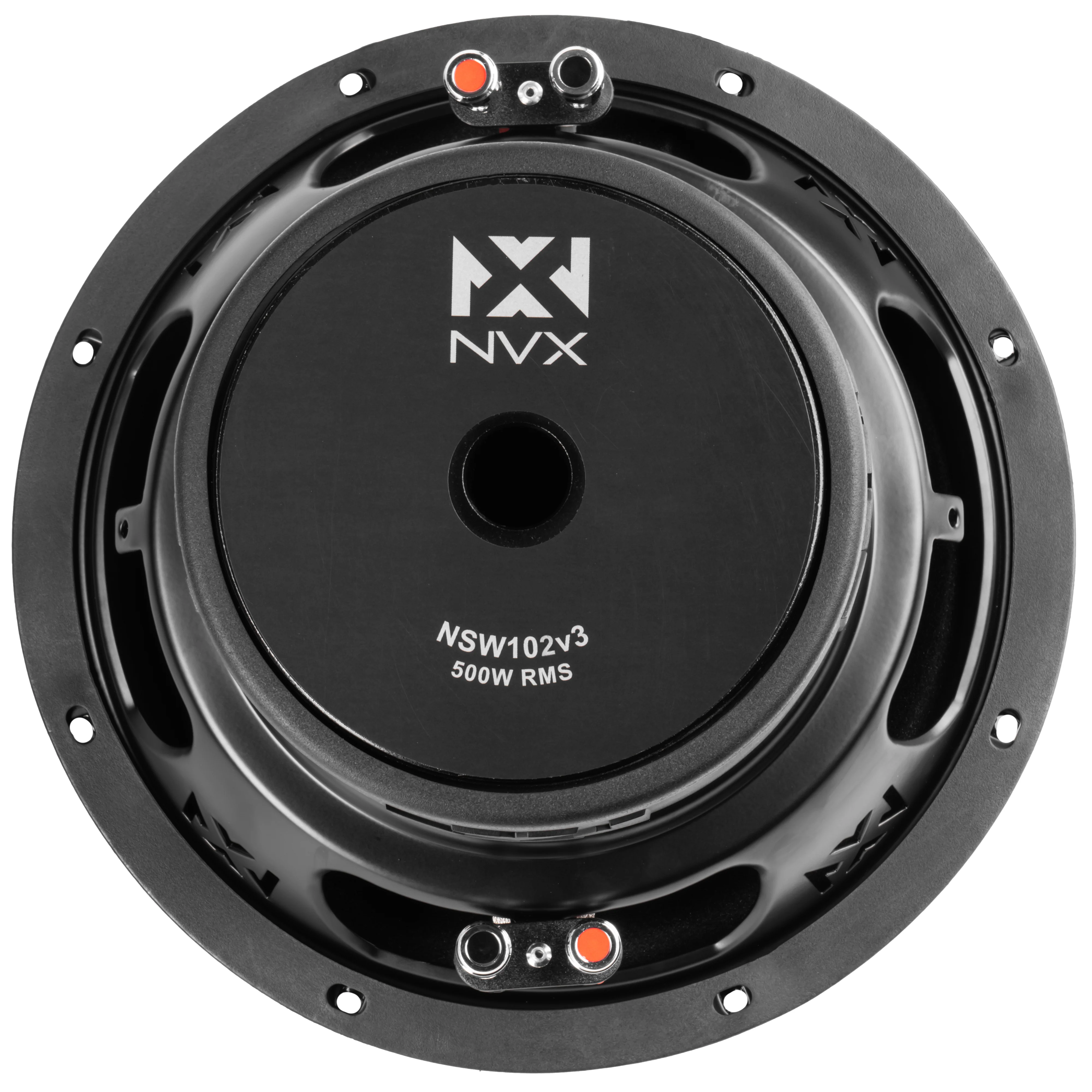

• Stamped Steel Vented Basket with NVX Punched Logo
• 2" High Temperature Copper Voice coil with Aluminum Former

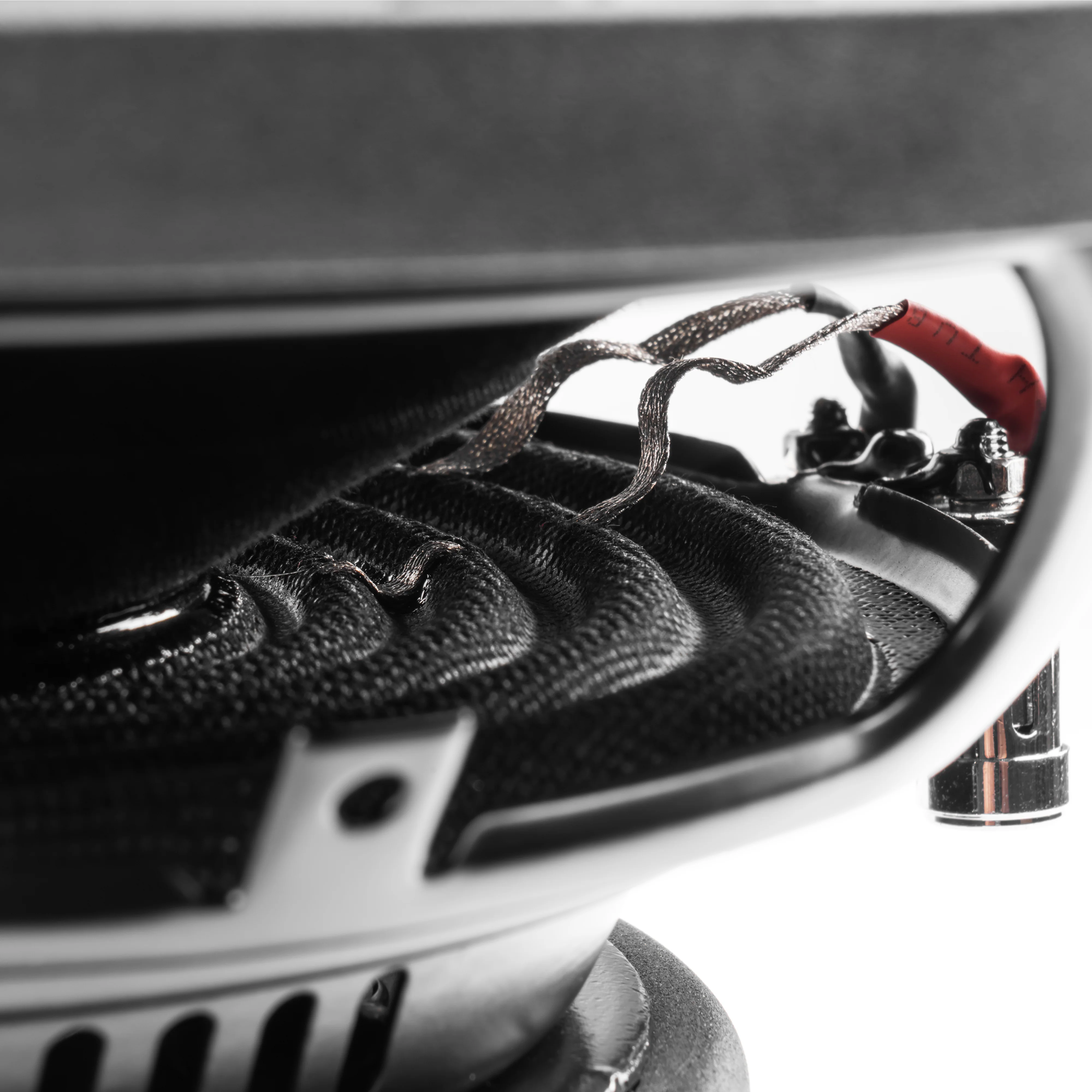

• Progressive Roll Single-layer Spider with Integrated Tinsel Leads
• Optimized High-Velocity Pole Vent

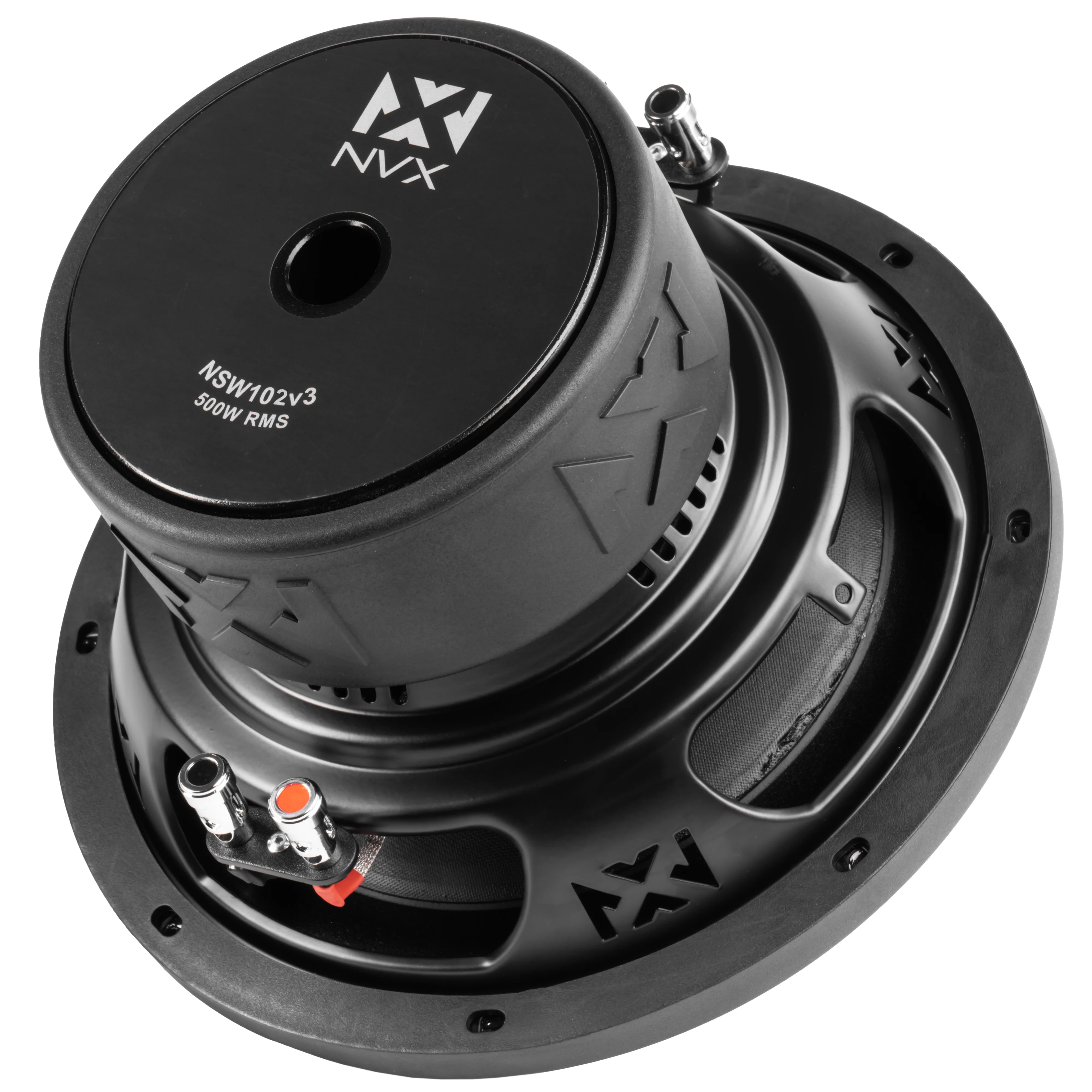

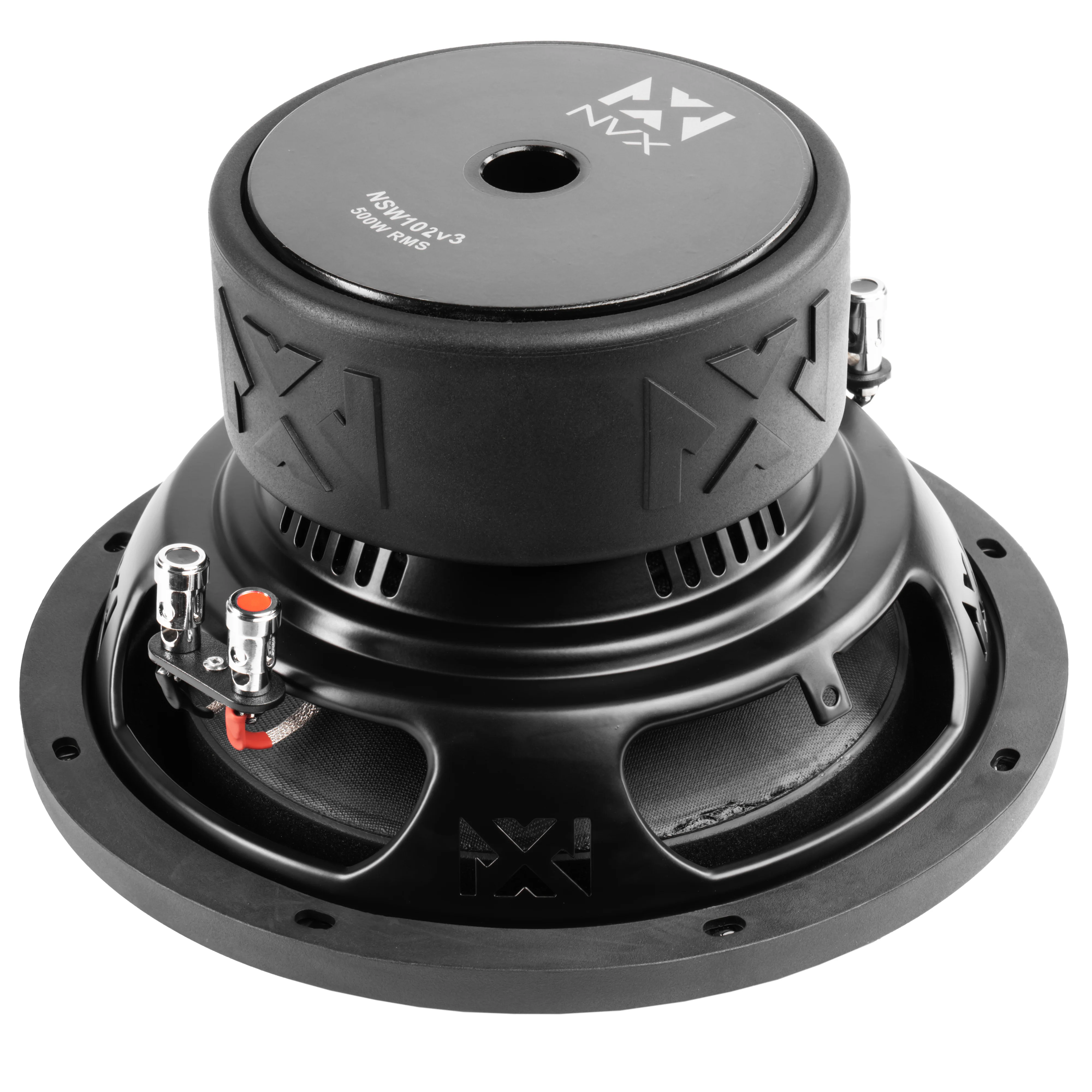

• 112 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
• Frequency Response: 20 - 200 Hz
• Resonance Frequency (Fs): 38.67 Hz
• Sensitivity: 85 dB
• Recommended sealed box volume: 0.60 cubic feet
• Recommended ported box volume: 1.5 cubic feet
• Top-mount depth: 5.36"
• Cutout diameter: 8.97"
• CTA-2031 Compliant
• 1-year Warranty from the Original Purchase Date

N-Series Owner’s Manual
