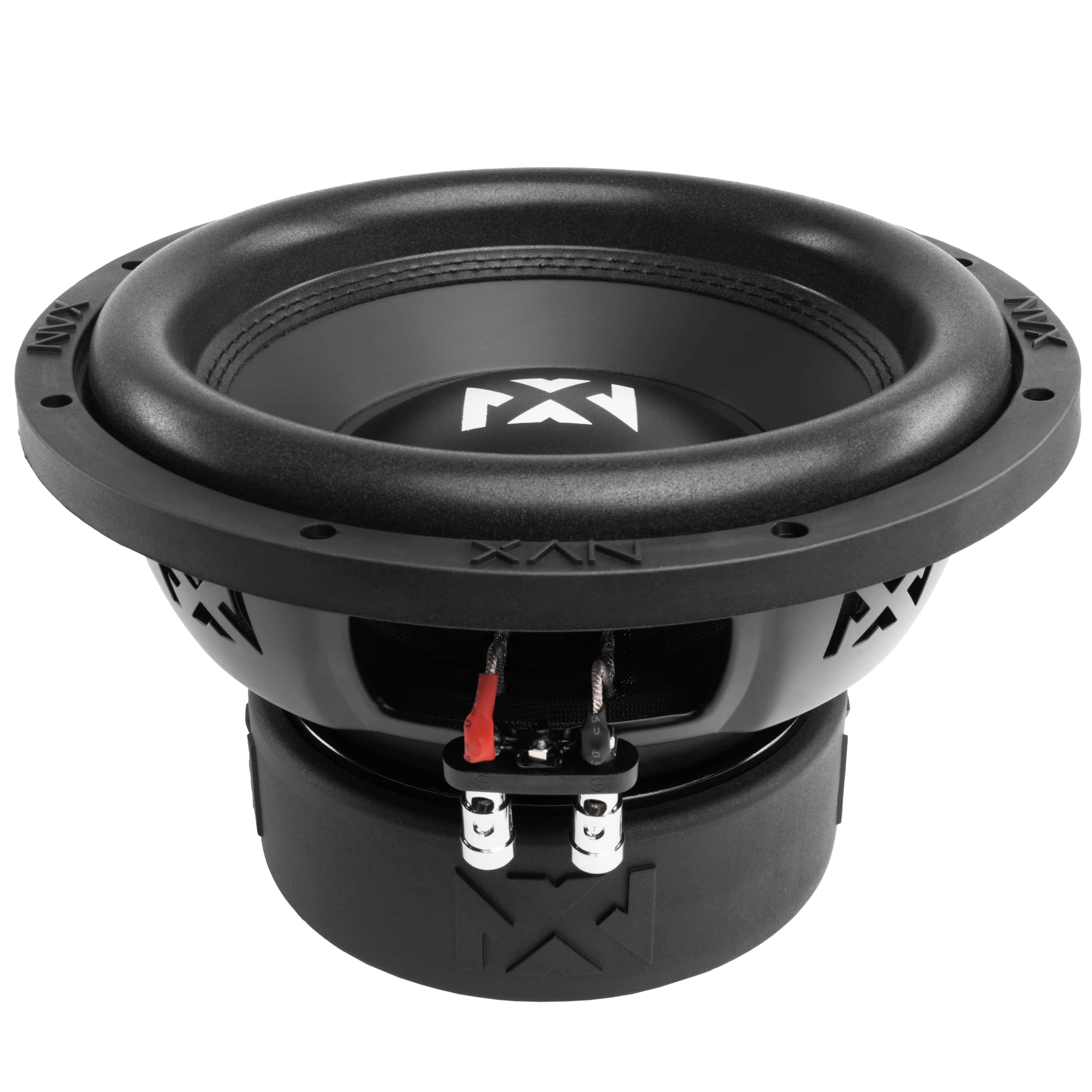

VSW104 Version 3 (VSW104v3) 1200W Peak (600W RMS) 10" VS-Series v3 Dual 4-Ohm Subwoofer

Product Details:

• 10" Dual 4-ohm VS Series Subwoofer
• Power Handling:
• Peak: 1200 watts
• RMS: 600 watts
• 13.5 mm Xmax
• Enhanced Pressed Paper Cone

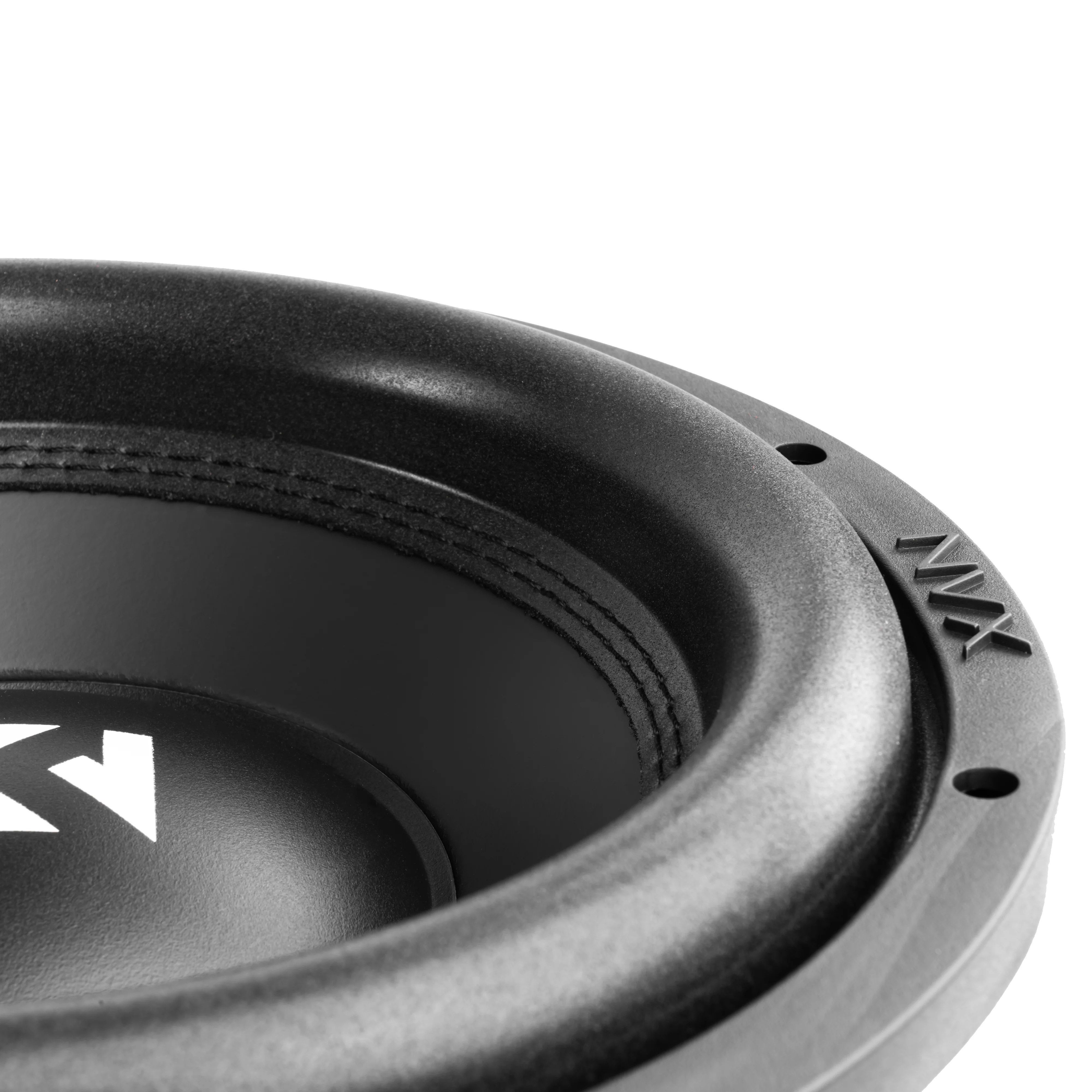

• High-Roll Foam Surround with Black Nylon Stitching

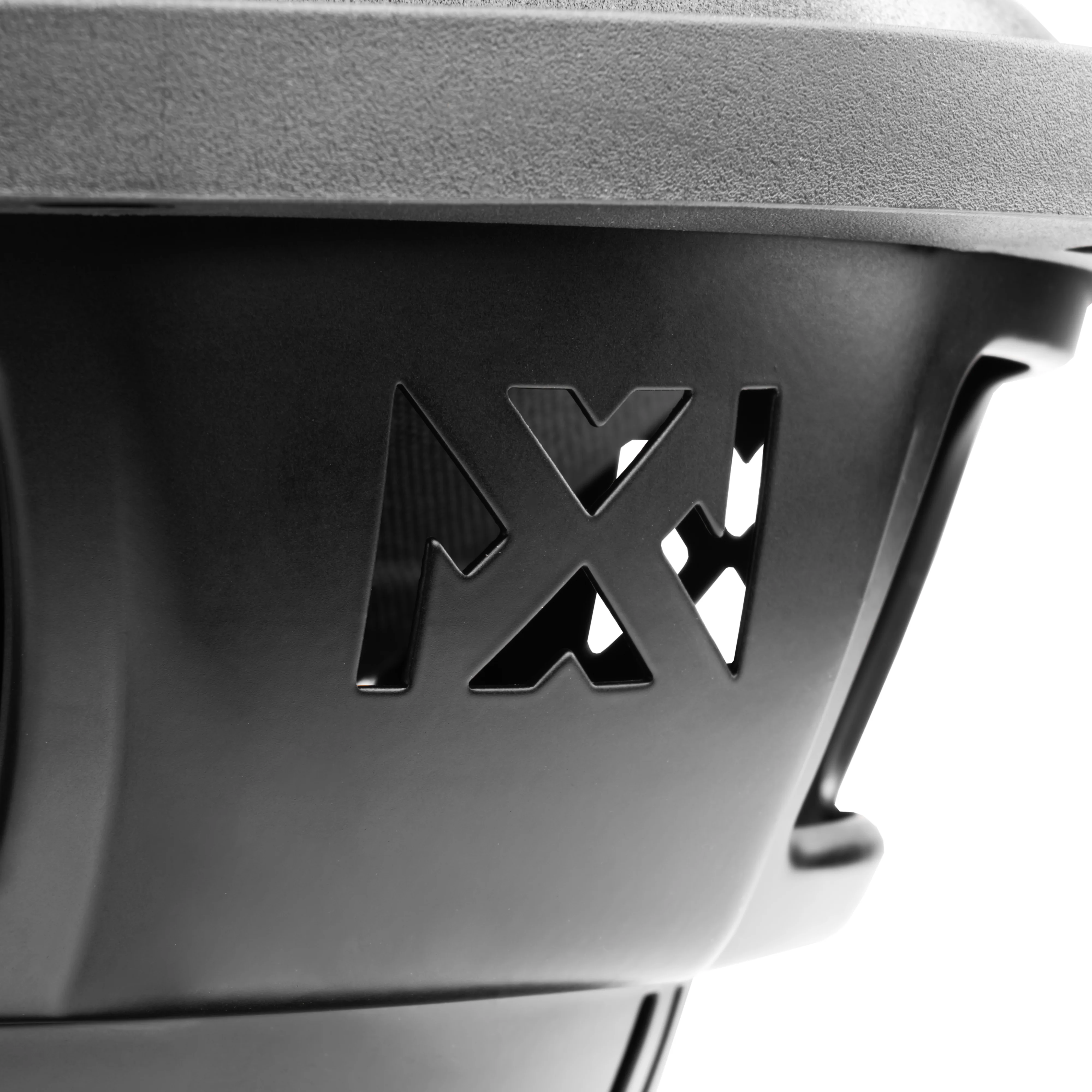

• Stamped Steel Vented Basket with NVX Punched Logo
• 2.5" High Temperature Copper Voice coil with Aluminum Former

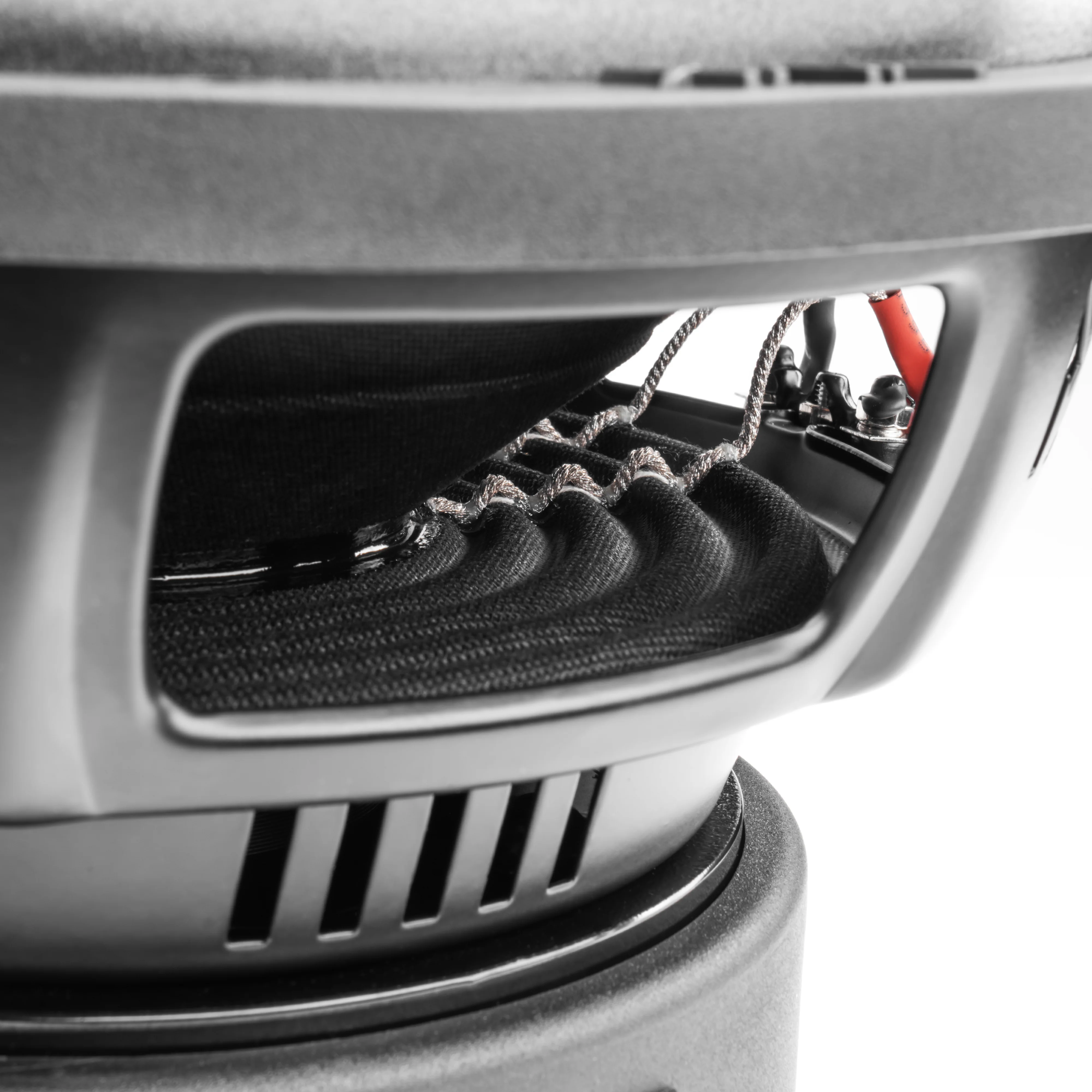

• Progressive Roll Single-layer Spider with Integrated Tinsel Leads
• Optimized High-Velocity Pole Vent
• 107 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
• Frequency Response: 20 - 200 Hz
• Resonance Frequency (Fs): 32.61 Hz
• Sensitivity: 85 dB
• Recommended sealed box volume: 0.5 cubic feet
• Recommended ported box volume: 1.25 cubic feet
• Top-mount depth: 5.80"
• Cutout diameter: 9.01"
• CTA-2031 Compliant
• 1-year Warranty from the Original Purchase Date
