VSW102 Version 3 (VSW102v3) 1200W Peak (600W RMS) 10" VS-Series v3 Dual 2-Ohm Subwoofer

Product Details:

• 10" Dual 2 ohm VS Series Subwoofer
• Power Handling:
• Peak: 1200 watts
• RMS: 600 watts
• Enhanced Pressed Paper Cone

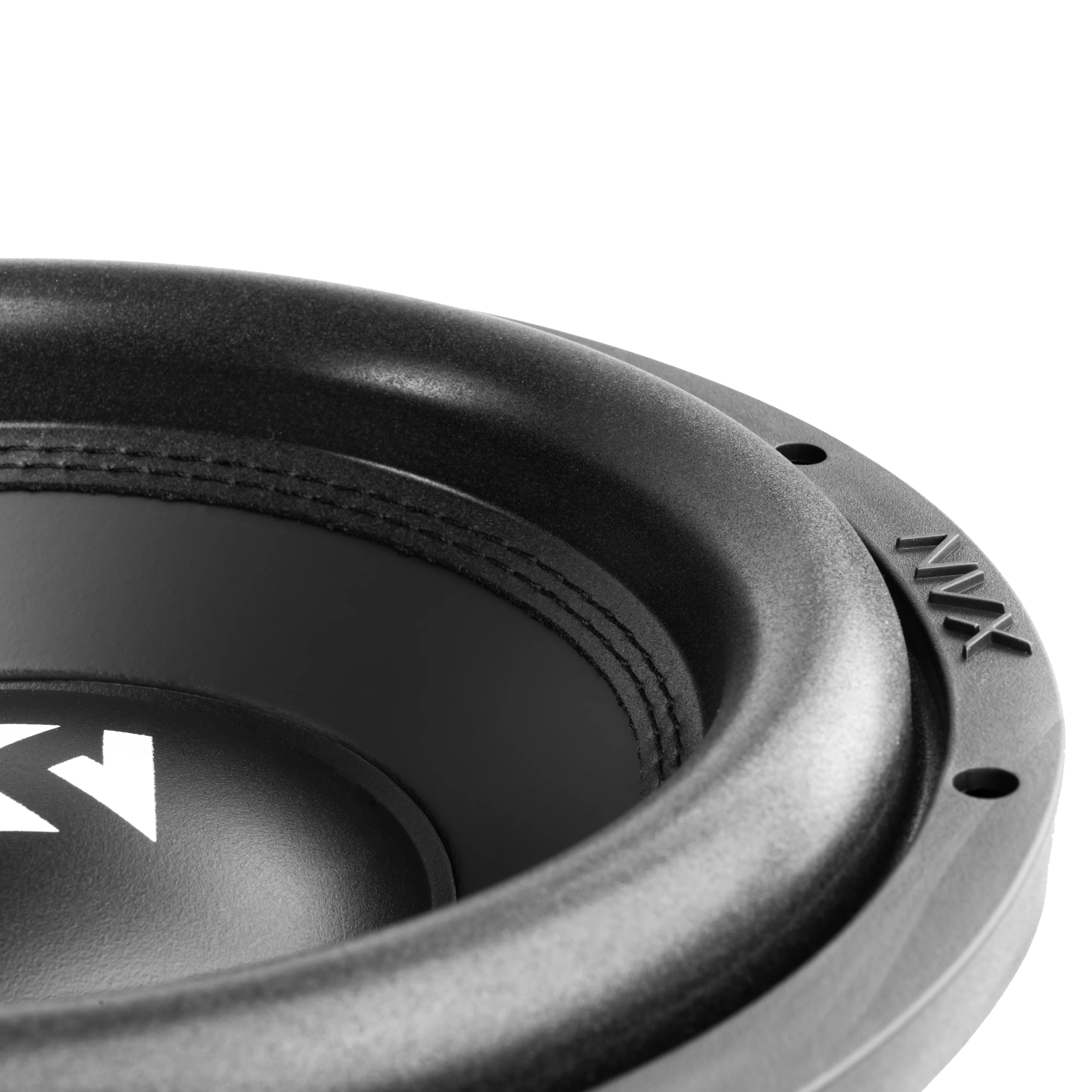

• High Roll Foam Surround with Black Nylon Stitching

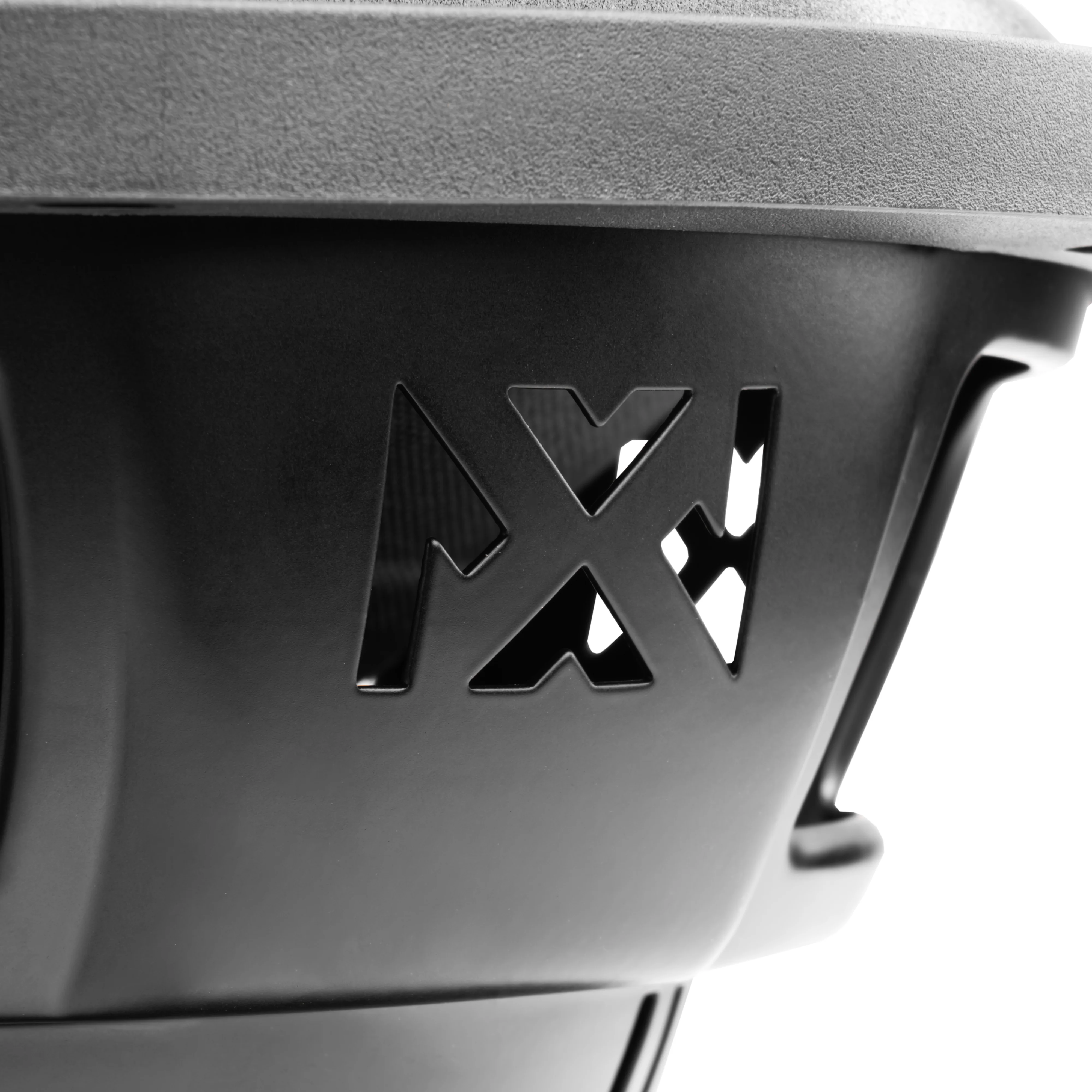

• Stamped steel vented basket with NVX punched logo
• 2.5" High Temperature Copper Voice coil with aluminum former

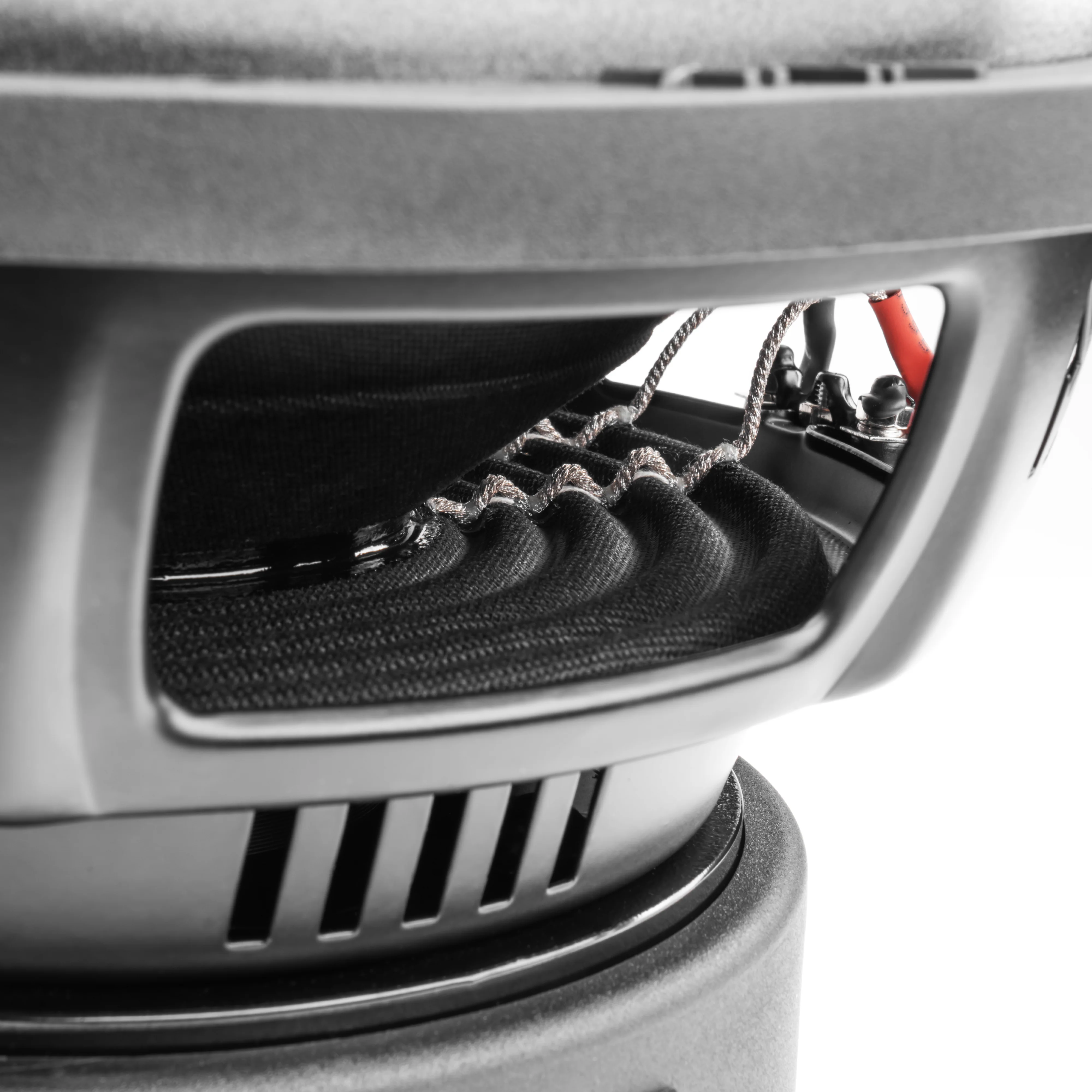

• Progressive roll single-layer spider with integrated tinsel leads
• Optimized high-velocity pole vent
• 107 oz. Double Stacked Ferrite magnet motor structure
• 13.5 mm Xmax
• Frequency Response: 20 - 200 Hz
• Resonance Frequency (Fs): 32.06 Hz
• Sensitivity: 85 dB
• Optimal sealed box volume: 0.5 cubic feet
• Optimal ported box volume: 1.25 cubic feet
• Top-mount depth: 5.80"
• Cutout diameter: 9.01"

• CTA-2031 Compliant
• 1-year Warranty from the Original Purchase Date

VS-Series Owner’s Manual
