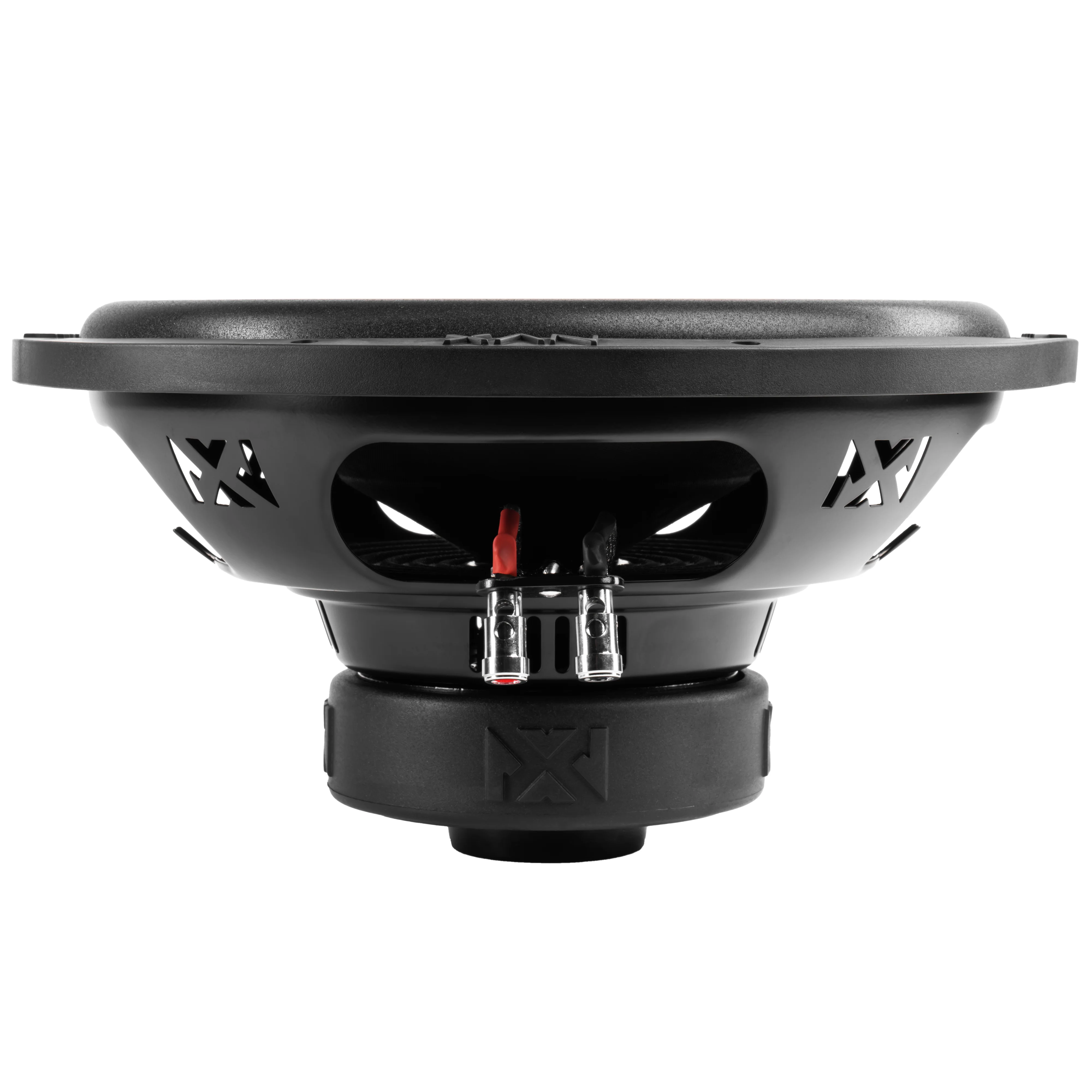

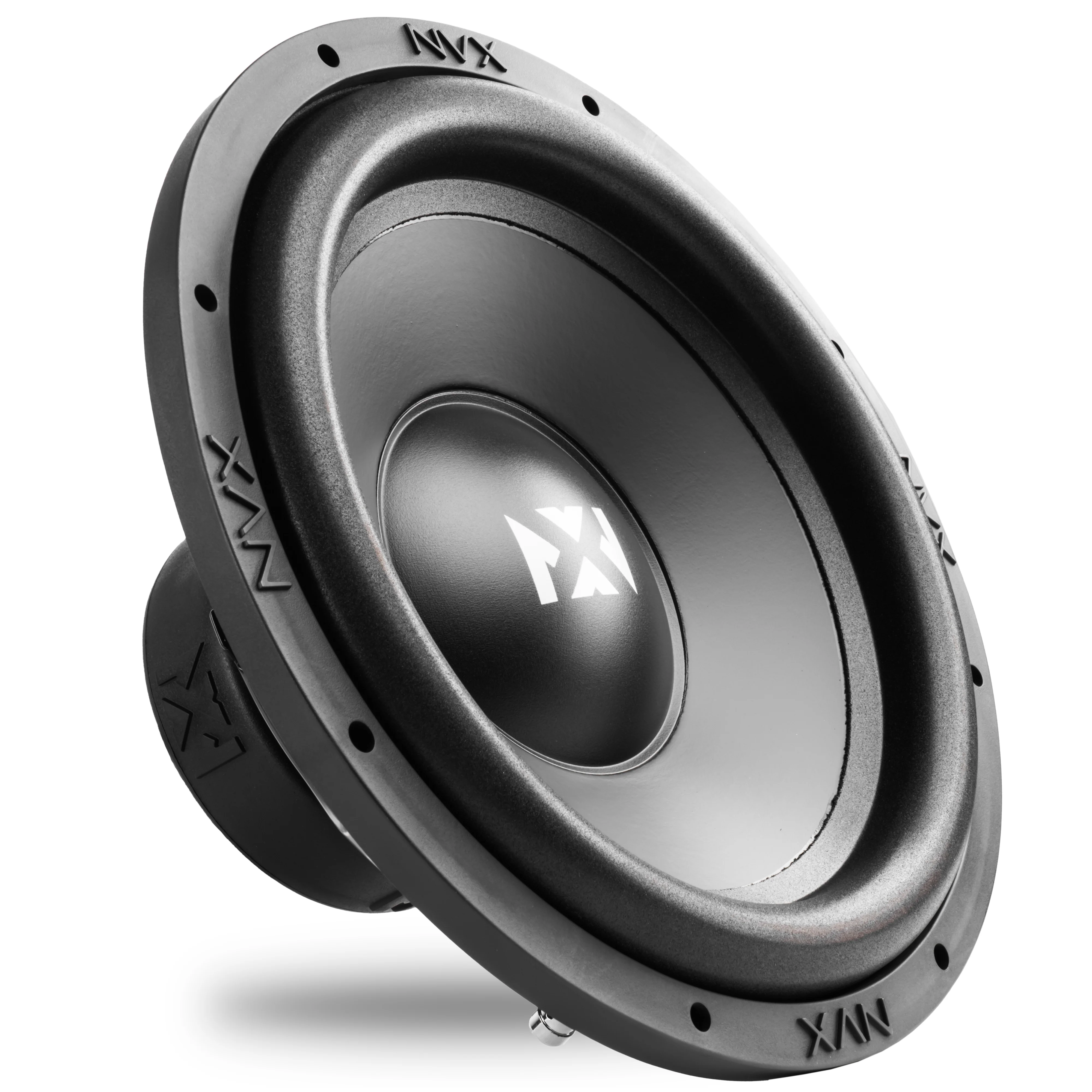

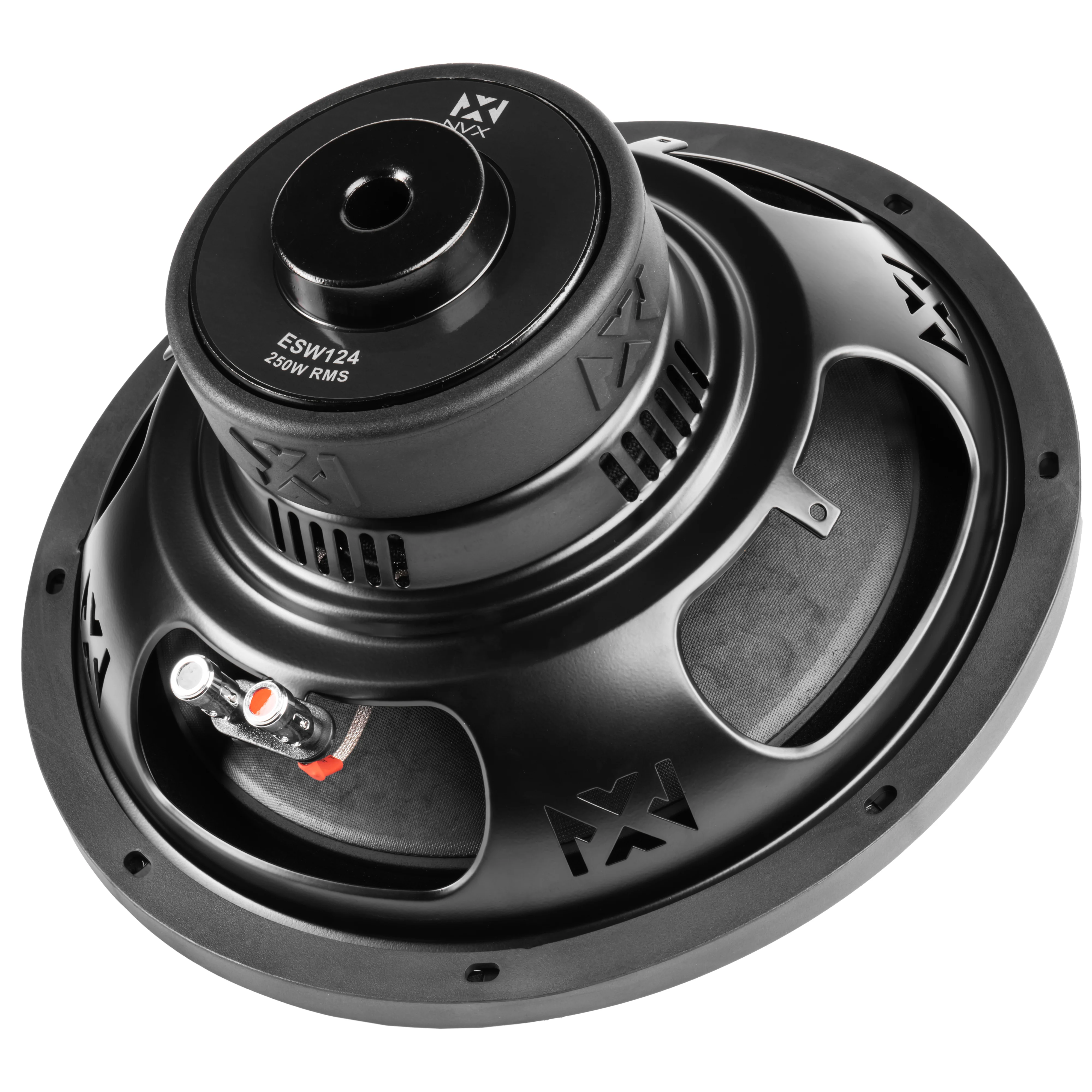

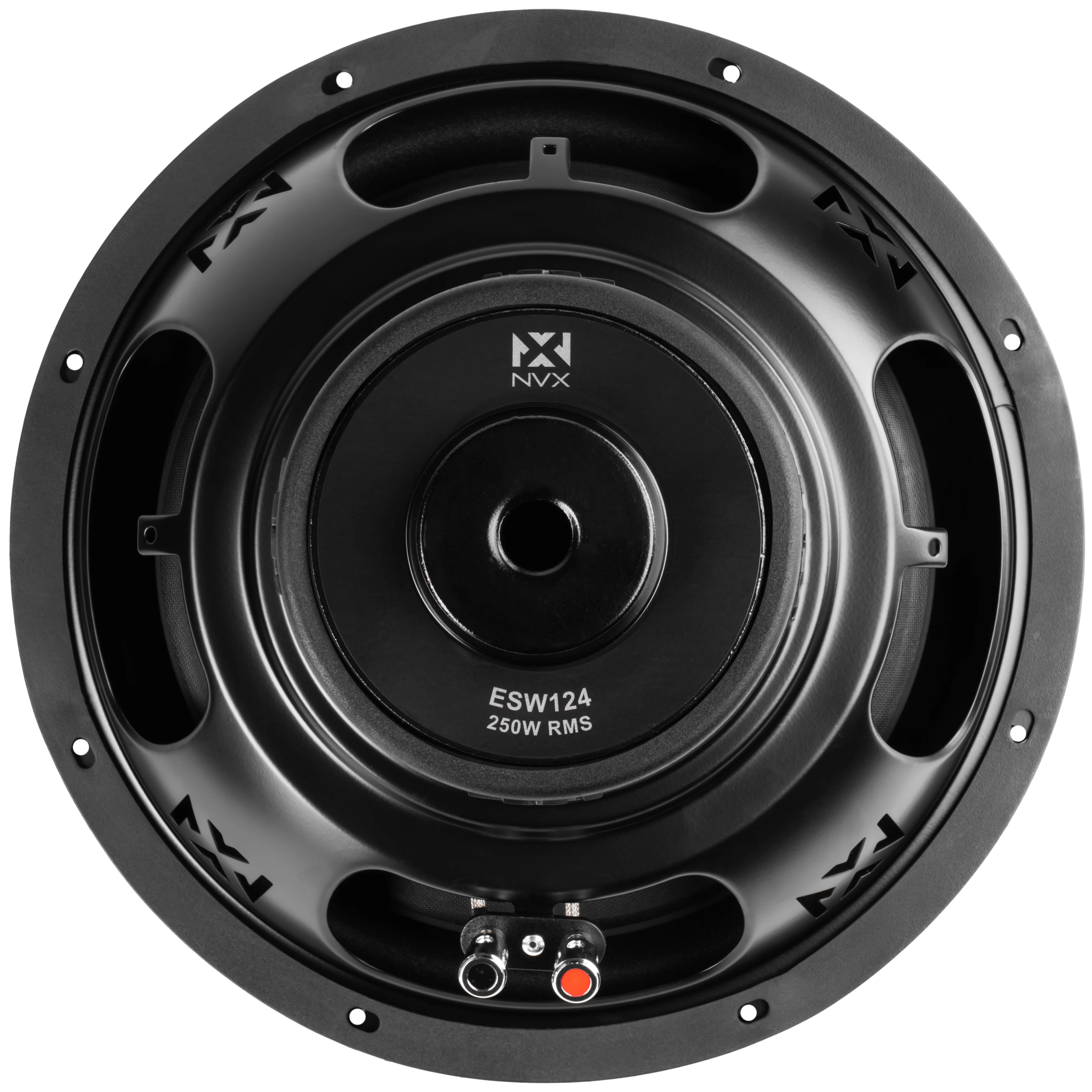

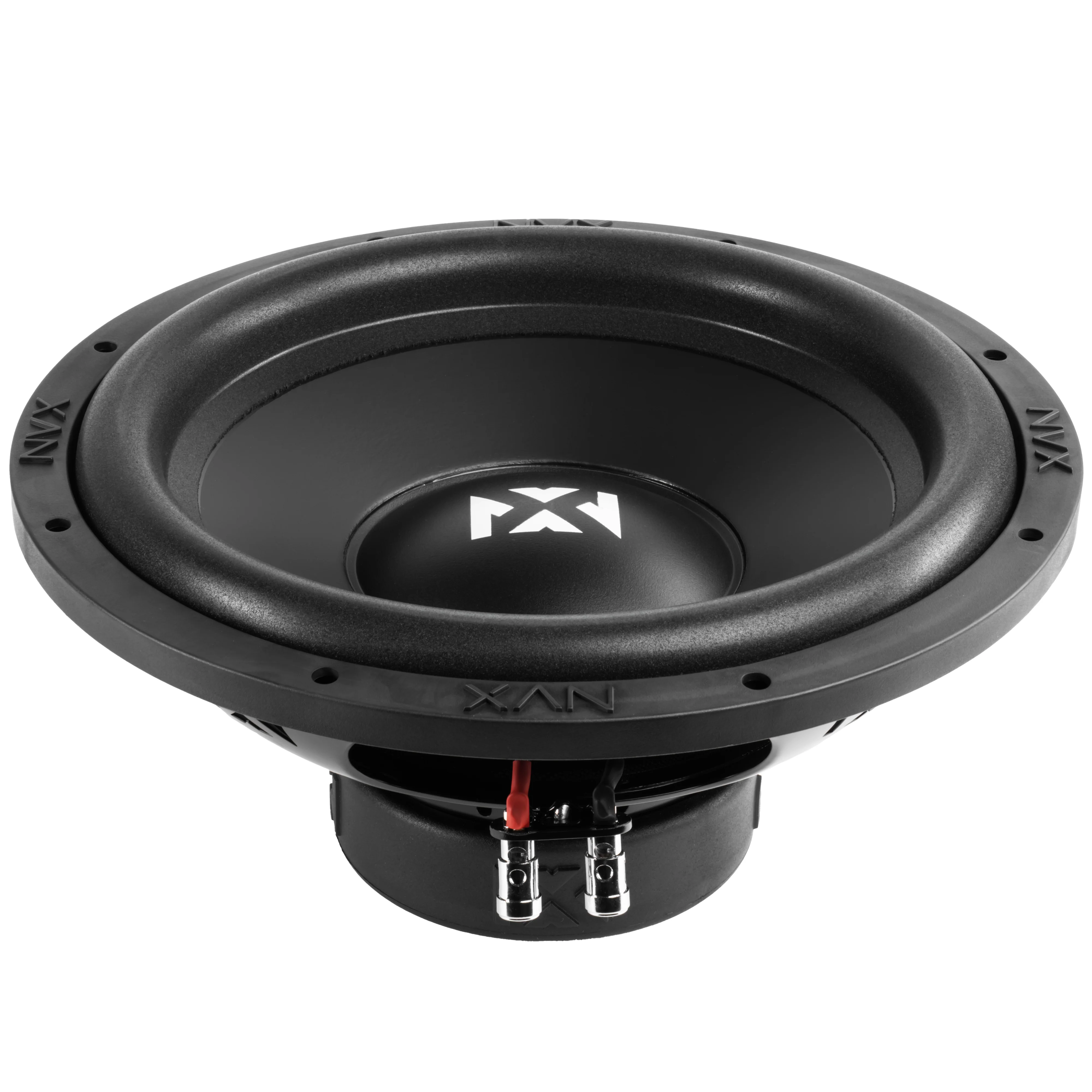

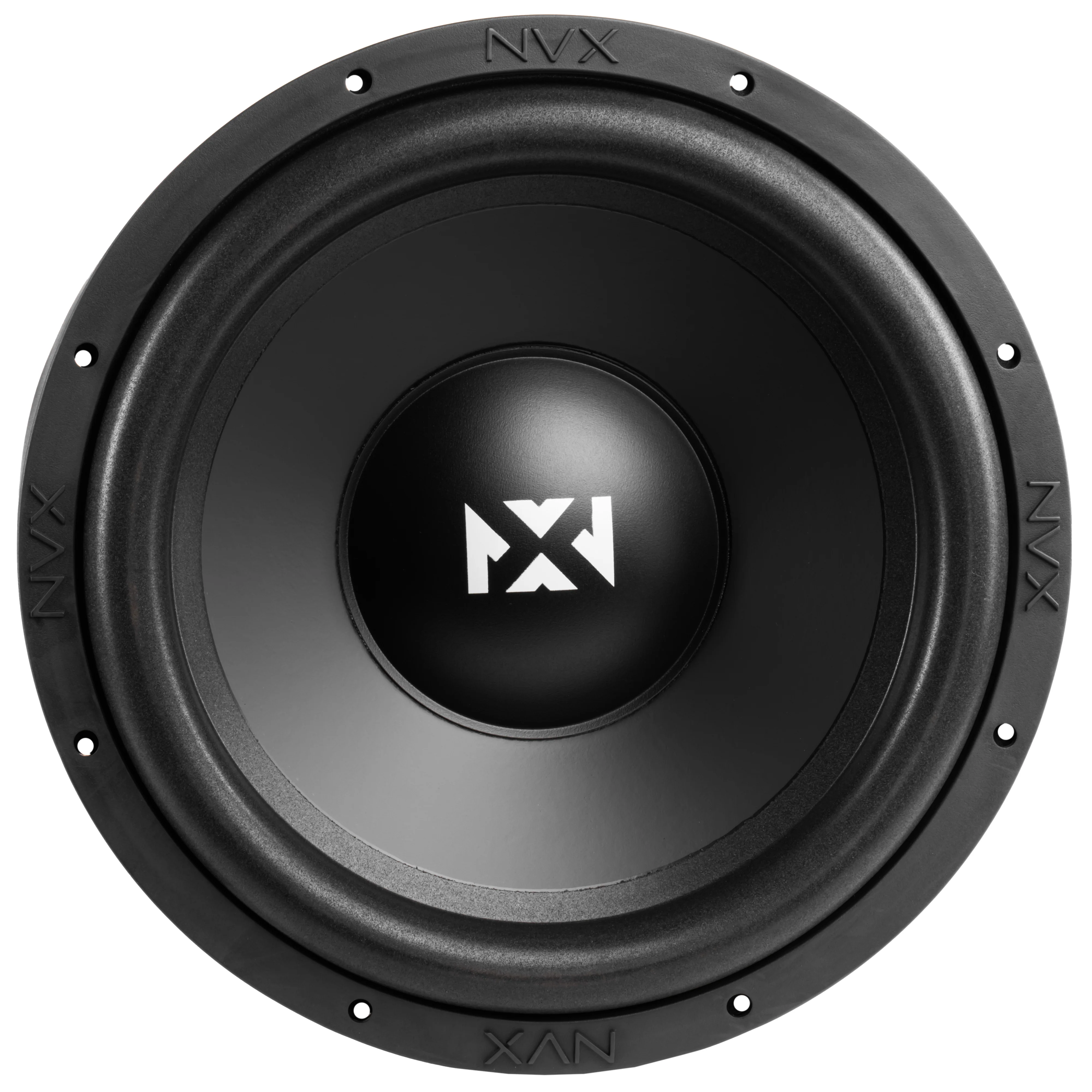

ESW124 500W Peak (250W RMS) E-Series 12" Single 4-Ohm Subwoofer

Product Details:

• 12" Single 4-ohm E-Series Subwoofer
• Power Handling:
• Peak: 500 watts
• RMS: 250 watts
• 10 mm Xmax
• Enhanced Pressed Paper Cone

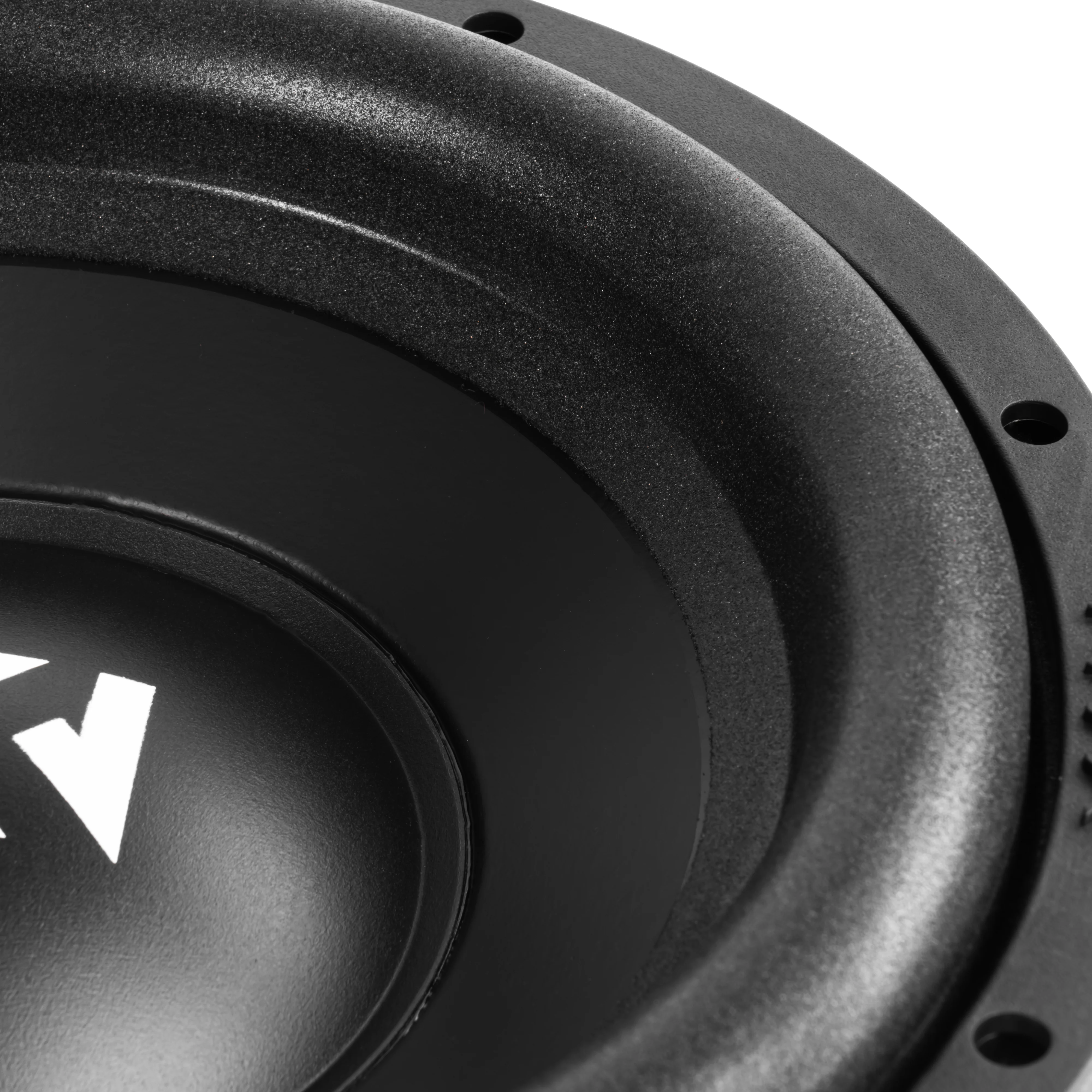

• High-Roll Foam Surround

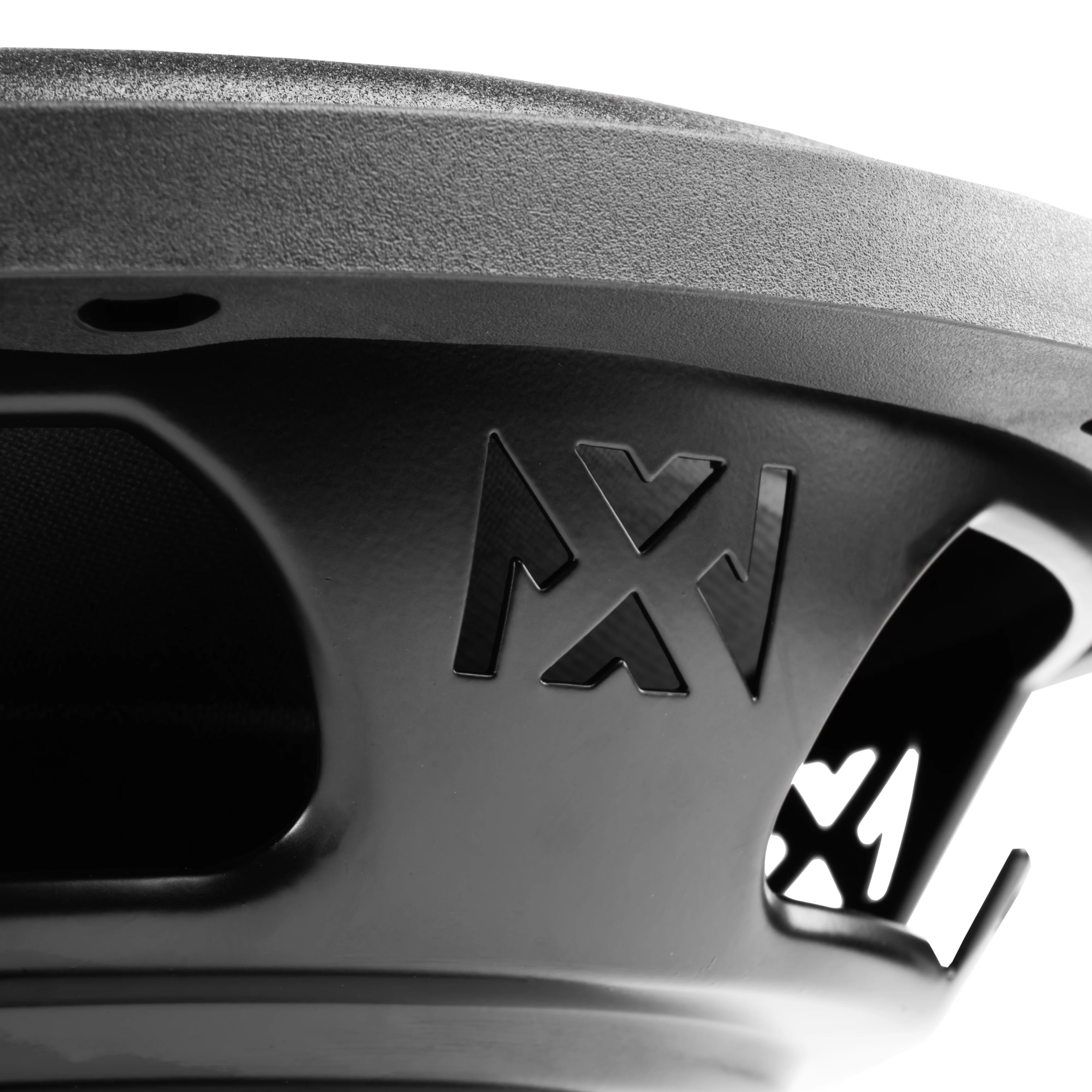

• Stamped Steel Vented Basket with NVX Punched Logo
• 1.5" High Temperature Copper Voice coil with Aluminum Former

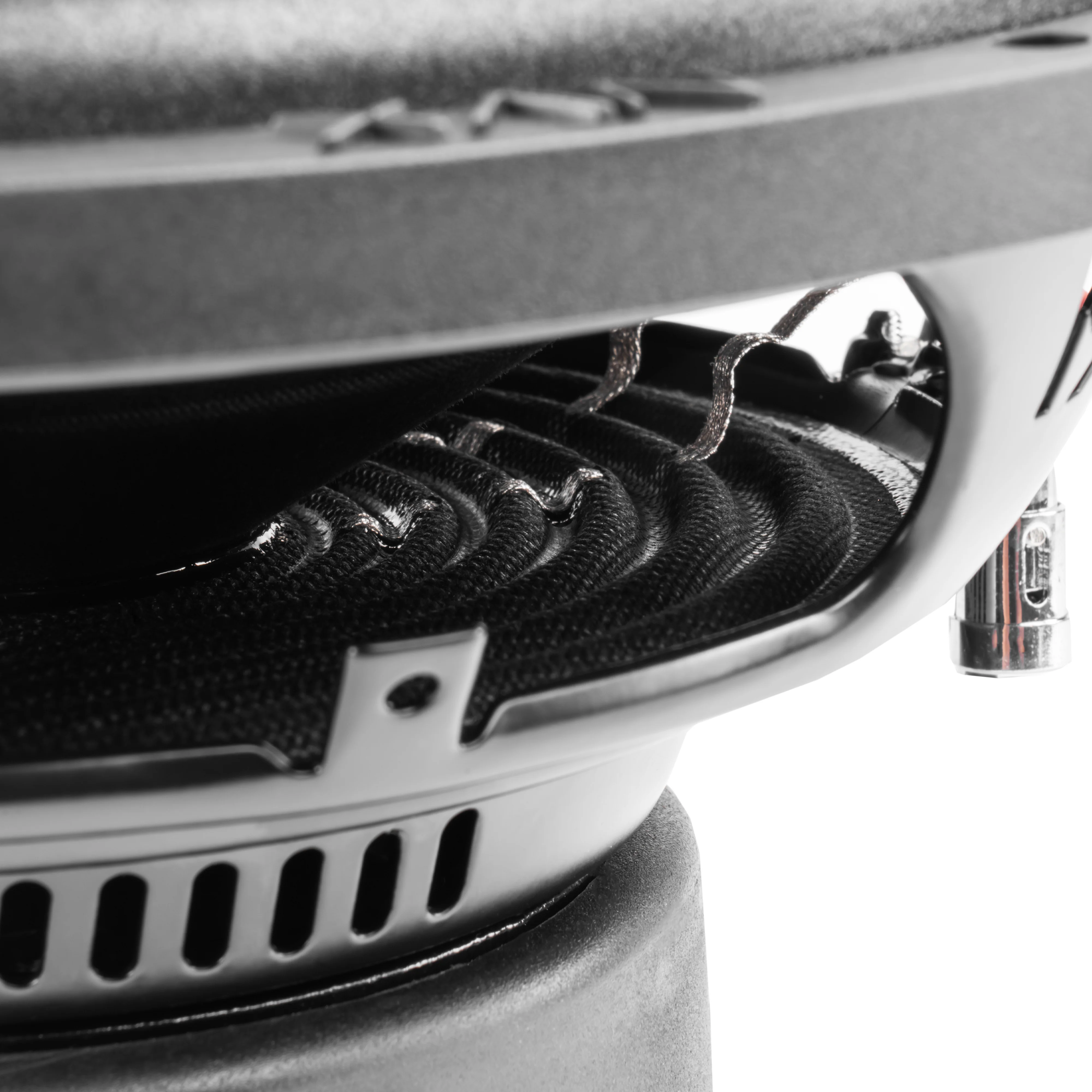

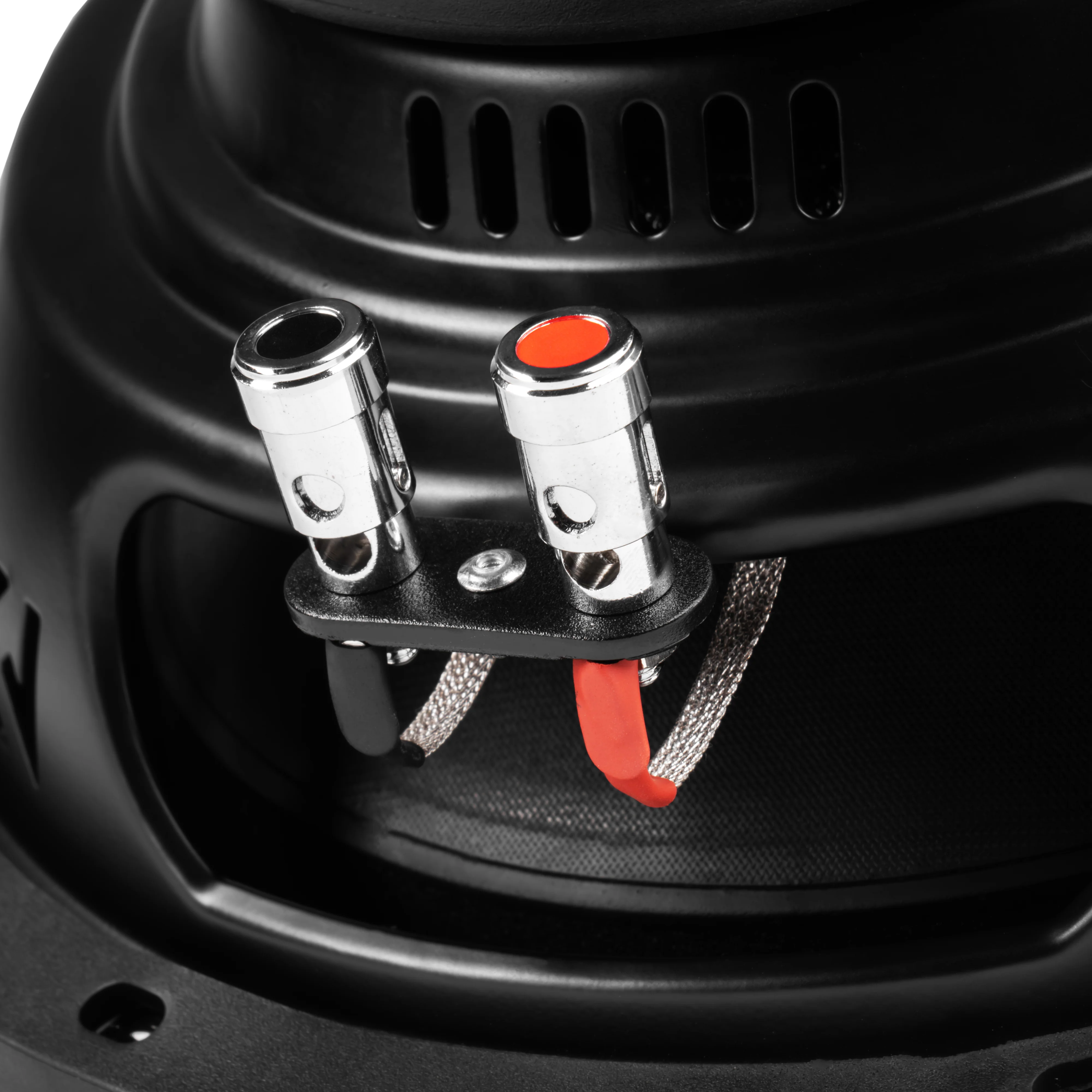

• Progressive Roll Single-layer Spider with Integrated Tinsel Leads
• Optimized High-Velocity Pole Vent
• 46 oz. Single Stacked Ferrite Magnet with Protective Rubber boot
• Frequency Response: 20 - 200 Hz
• Resonance Frequency (Fs): 37.48 Hz
• Sensitivity: 87 dB
• Recommended sealed box volume: 1.5 cubic feet
• Recommended ported box volume: 2.0 cubic feet
• Top-mount depth: 5.56"
• Cutout diameter: 10.86"
• CTA-2031 Compliant
• 1-year Warranty from the Original Purchase Date
