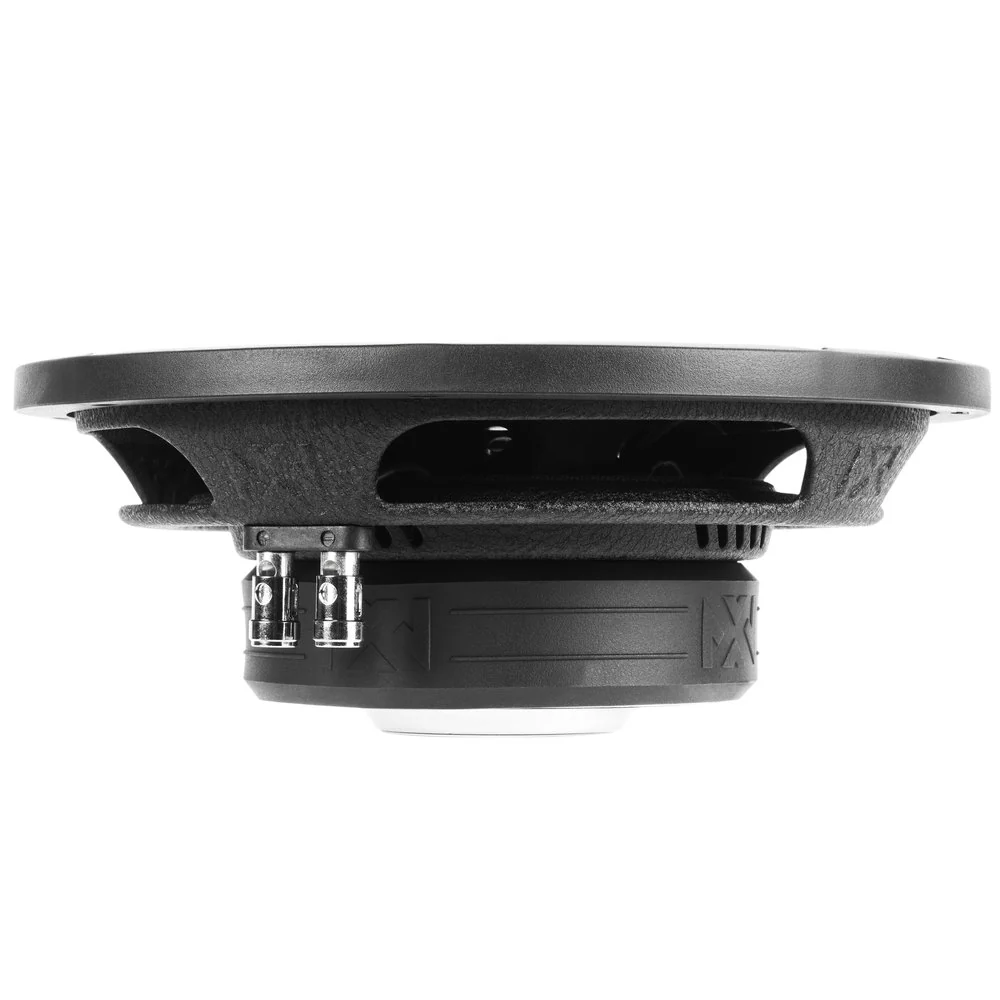

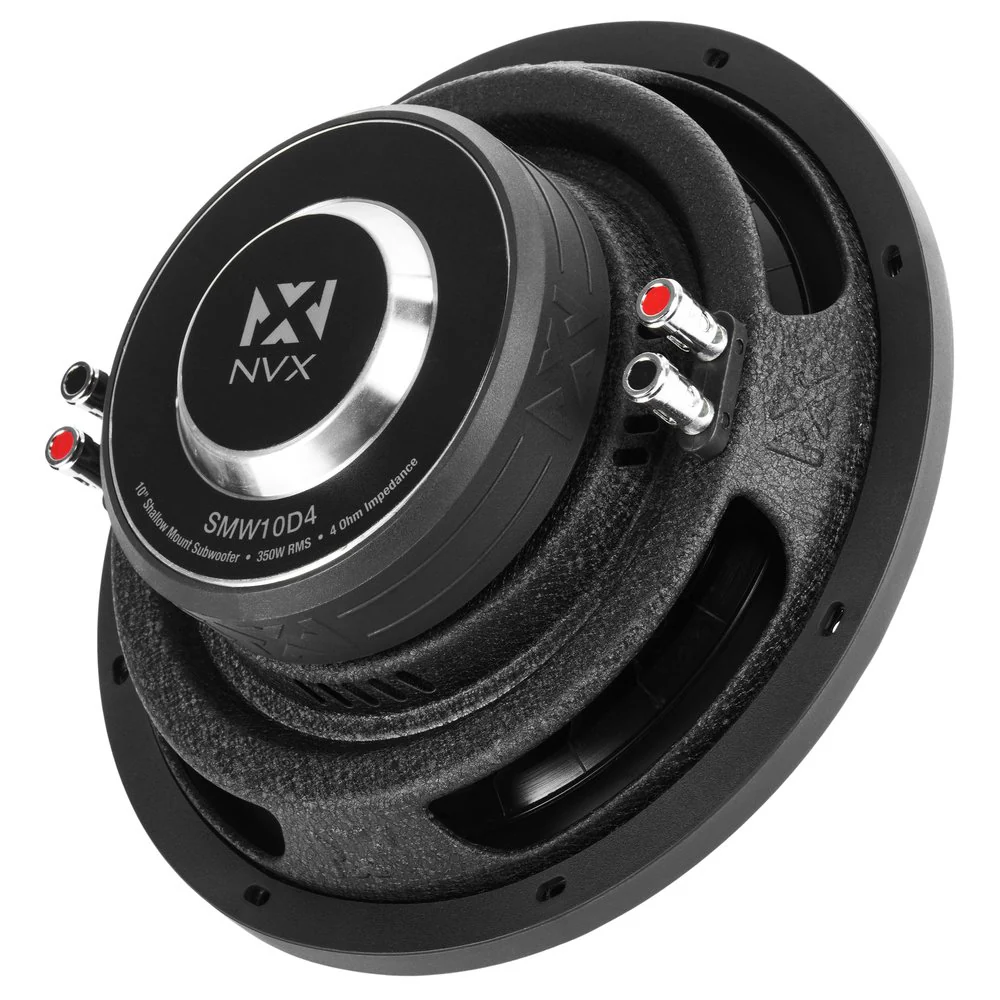

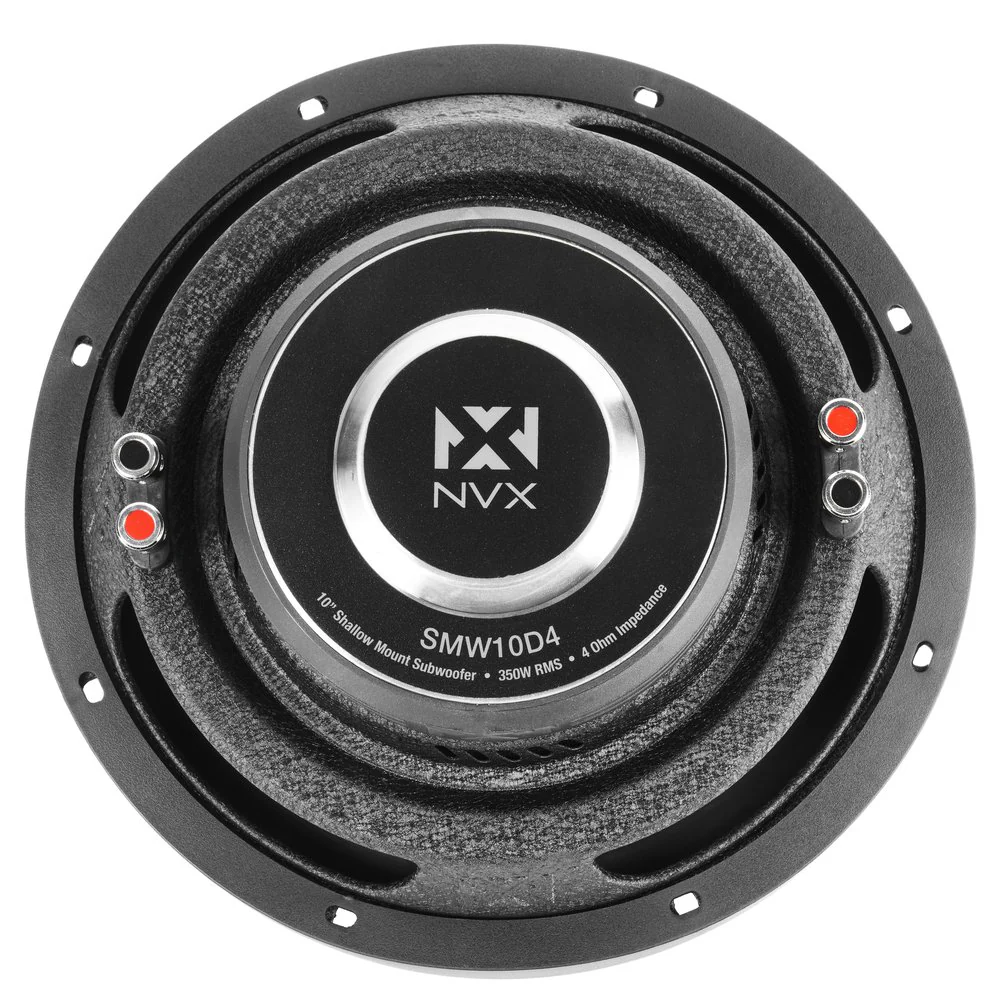

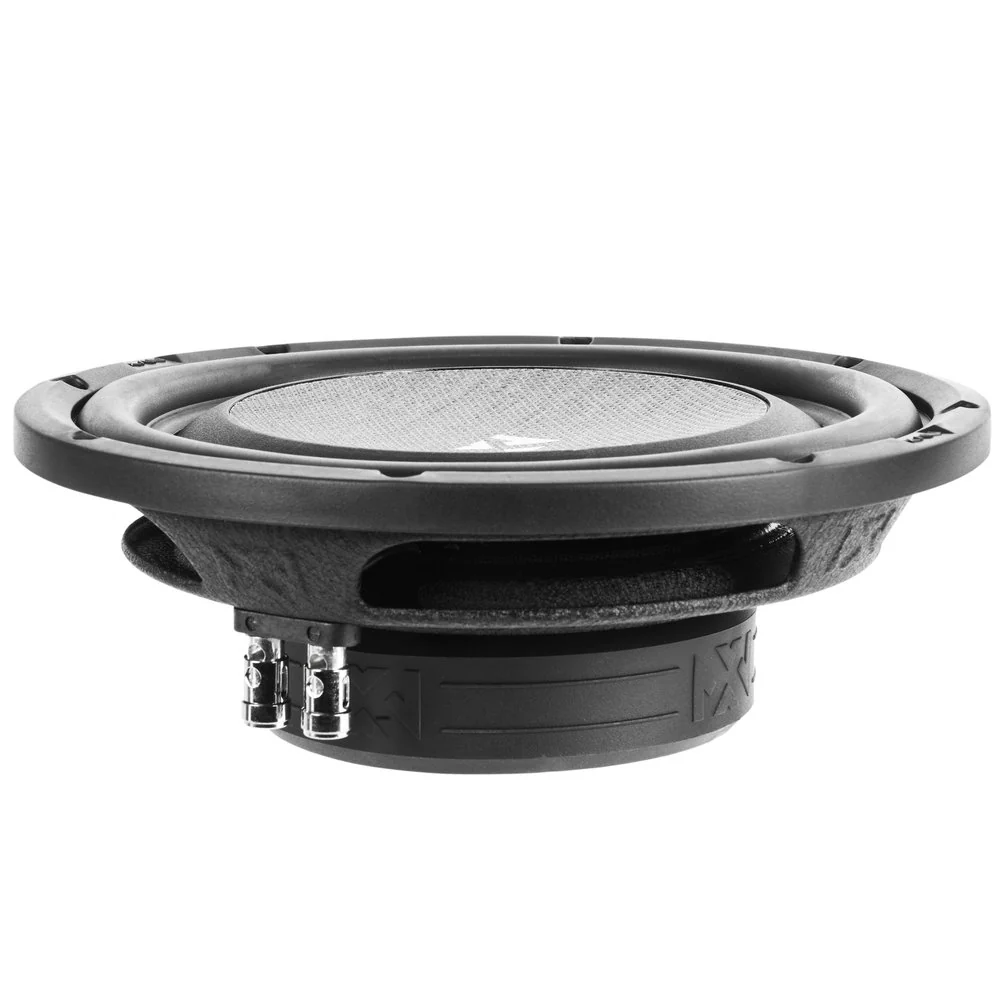

SMW10D4 700W Peak (350W RMS) S-Series Shallow-Mount 10" Dual 4-Ohm Subwoofer

Product Details:

• 10" Dual 4 ohm S Series Subwoofer
• Power Handling:
  • Peak: 700 watts
  • RMS: 350 watts

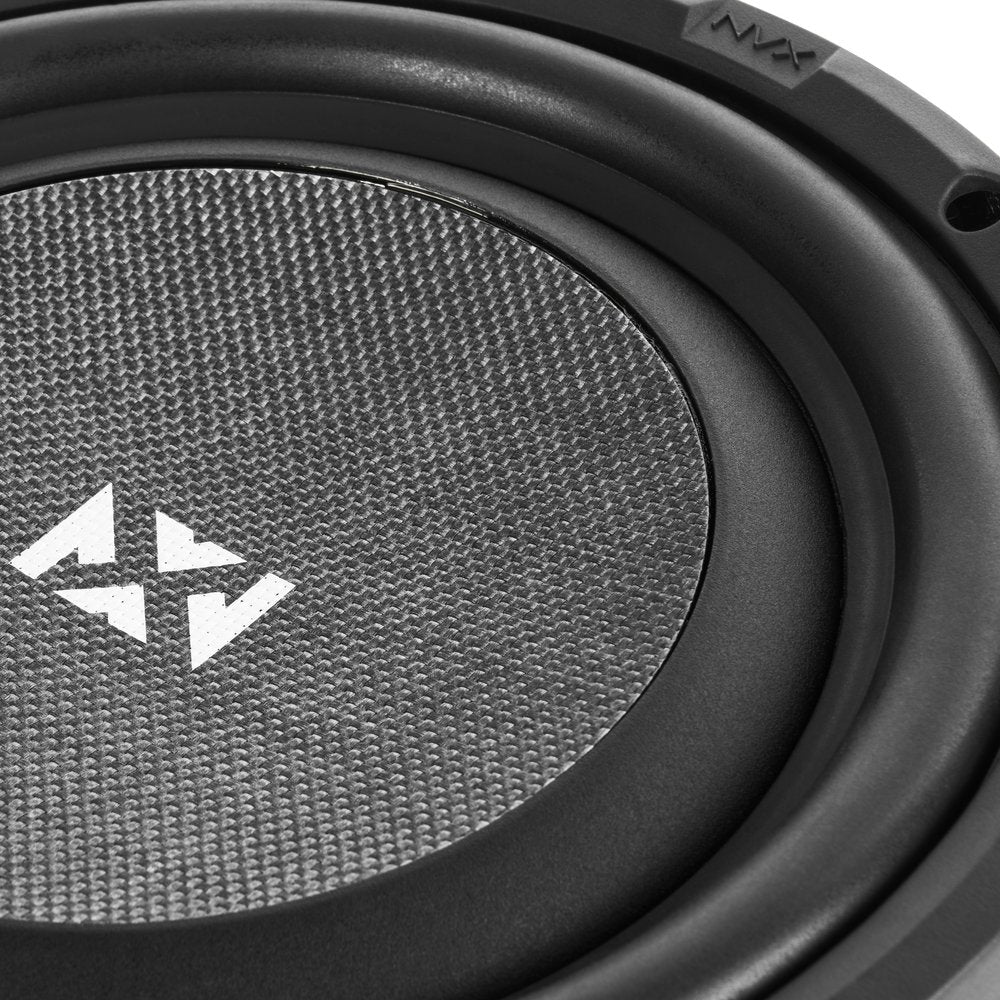

• Carbon Fiber Reinforced Polypropylene Cone
• Butyl Rubber Surround
• 2" High-Temperature Aluminum Voice coil
• 8 mm Xmax
• 50 oz. Single Stacked High Energy Y30 Ferrite magnet

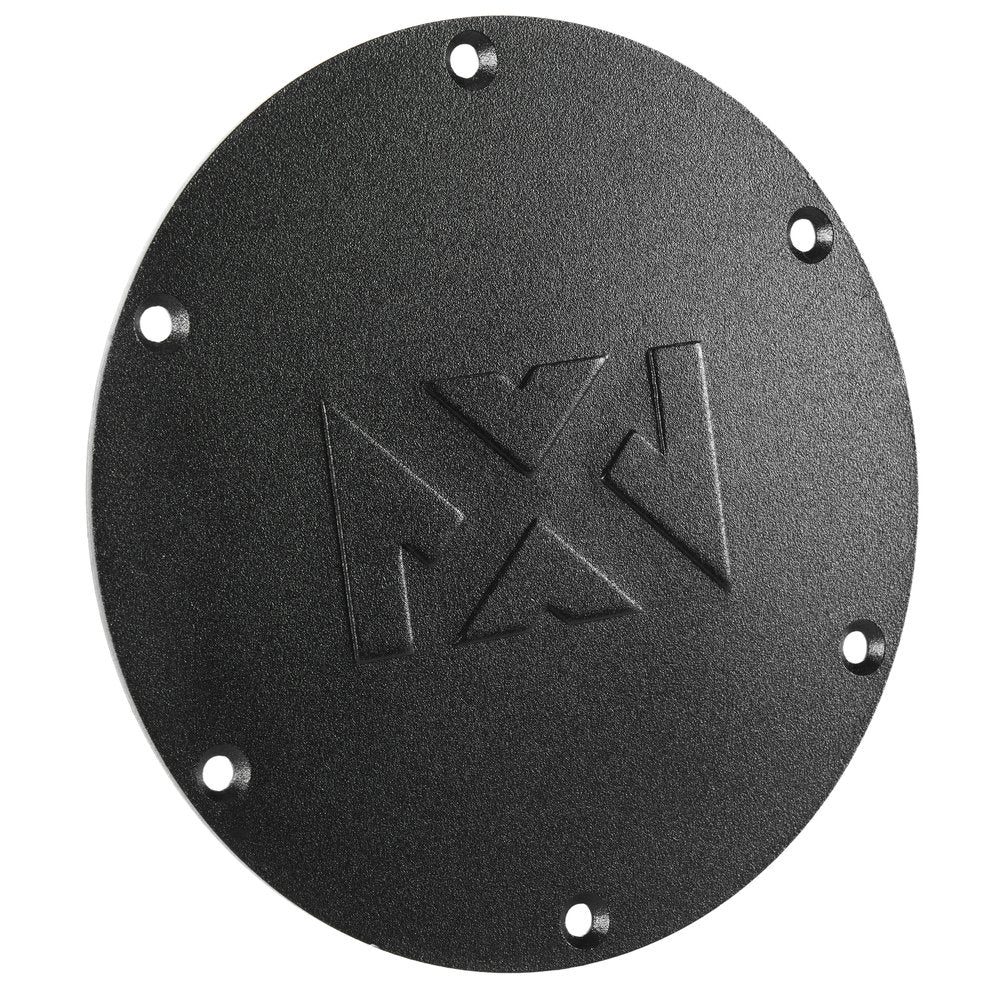

• Includes depth extension plate for extremely shallow boxes

• Versatile shallow mounting depth design

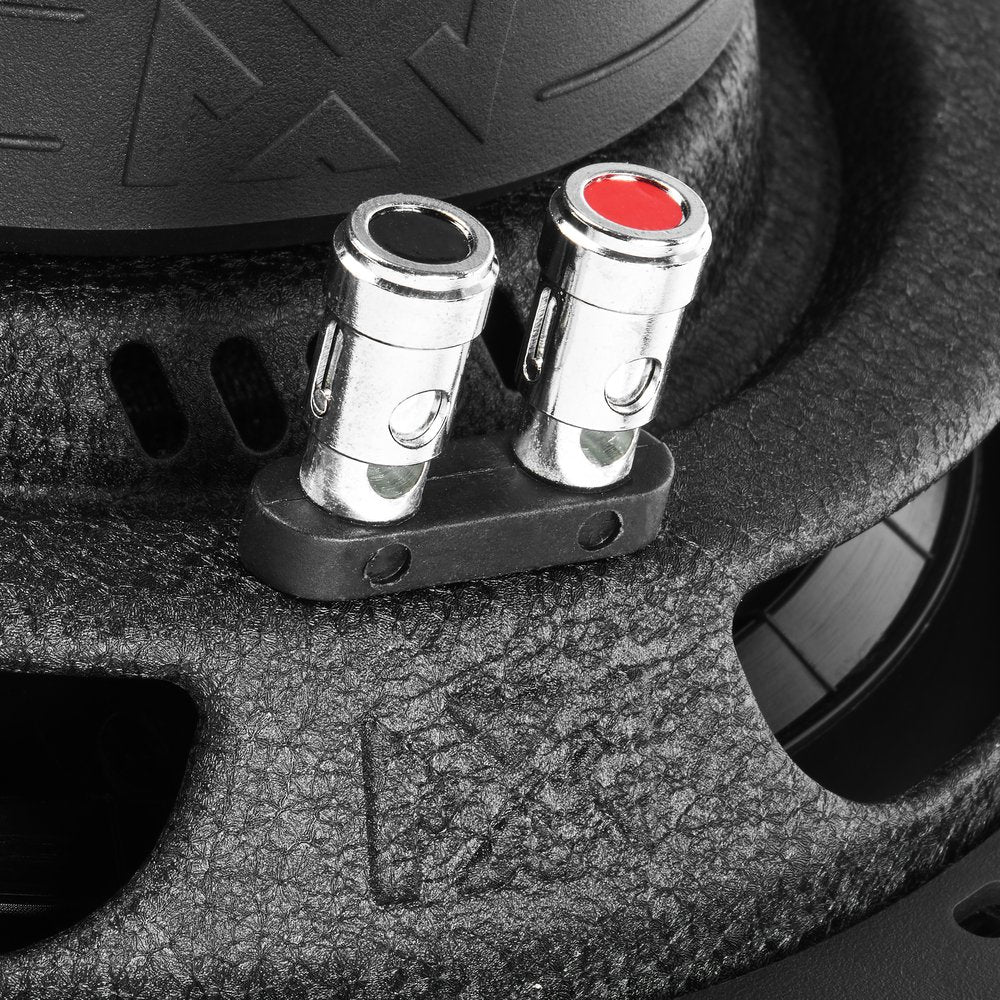

• Chrome-plated, spring loaded push terminals for secure connection
• Frequency Response: 25 - 350 Hz
• Resonance Frequency (Fs): 35.83 Hz
• Sensitivity: 88 dB
• Optimal sealed box volume: 0.75 cubic feet
• Optimal ported box volume: 1.25 cubic feet
• Top-mount depth: 3.23"
• Cutout diameter: 9.14"
• CTA-2031 Compliant
• 1-year Warranty from the Original Purchase Date

S-Series owner’s manual
