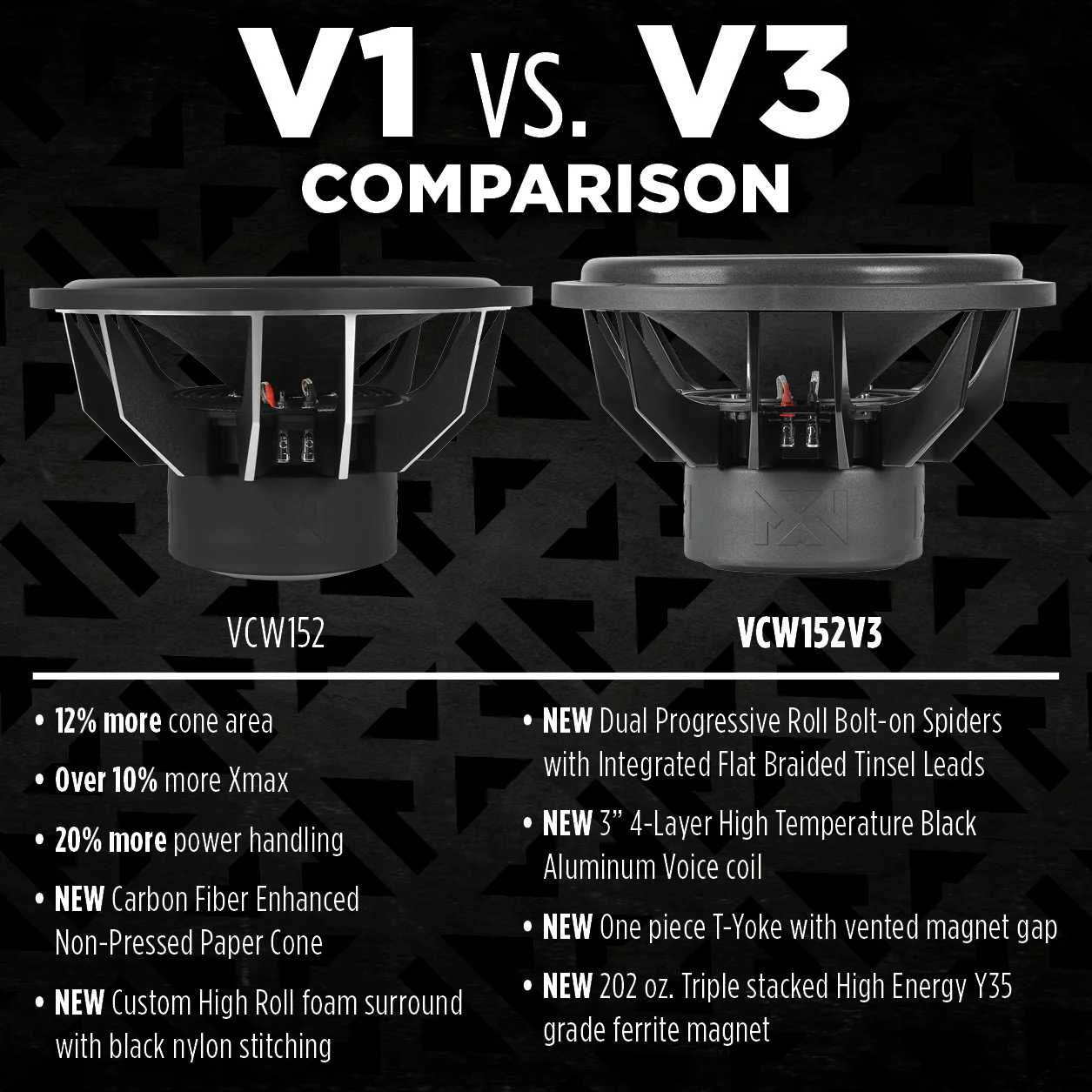

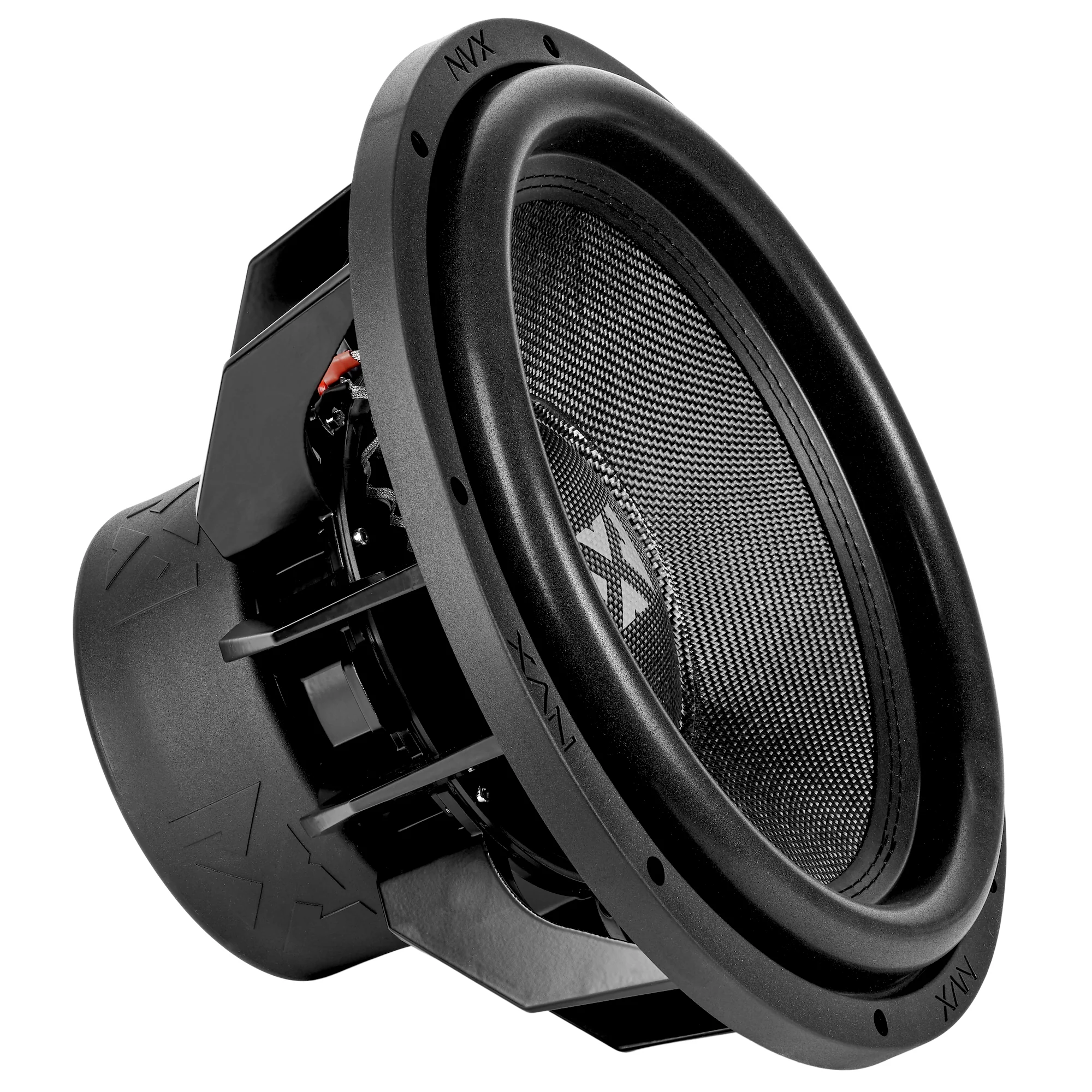

VCW152 Version 3 (VCW152v3) 3000W Peak (1500W RMS) 15" VC-Series v3 Dual 2-Ohm Subwoofer

Product Details:

• 15" Dual 2 ohm VC Series Subwoofer
• Power Handling:
• Peak: 3000 watts
• RMS: 1500 watts

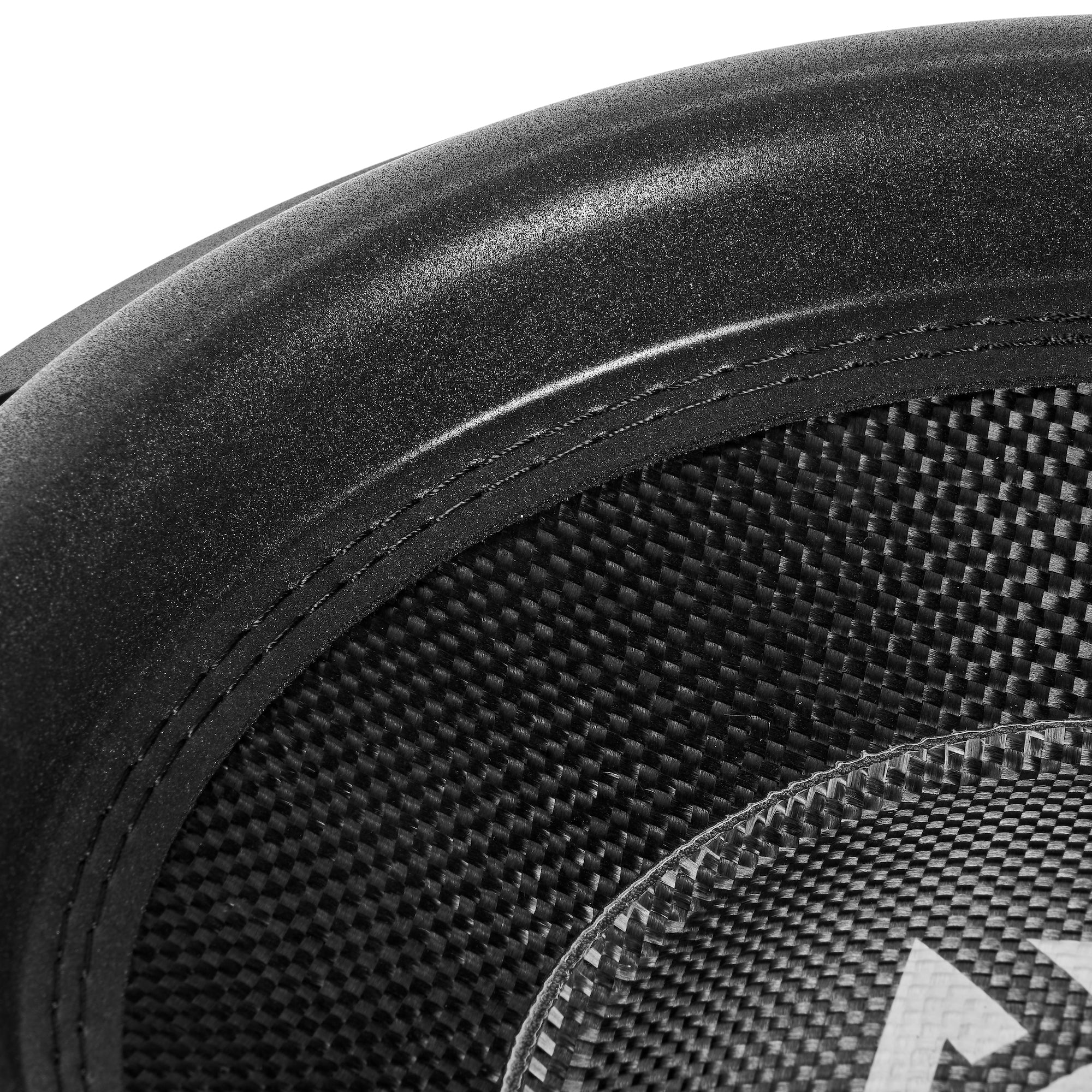

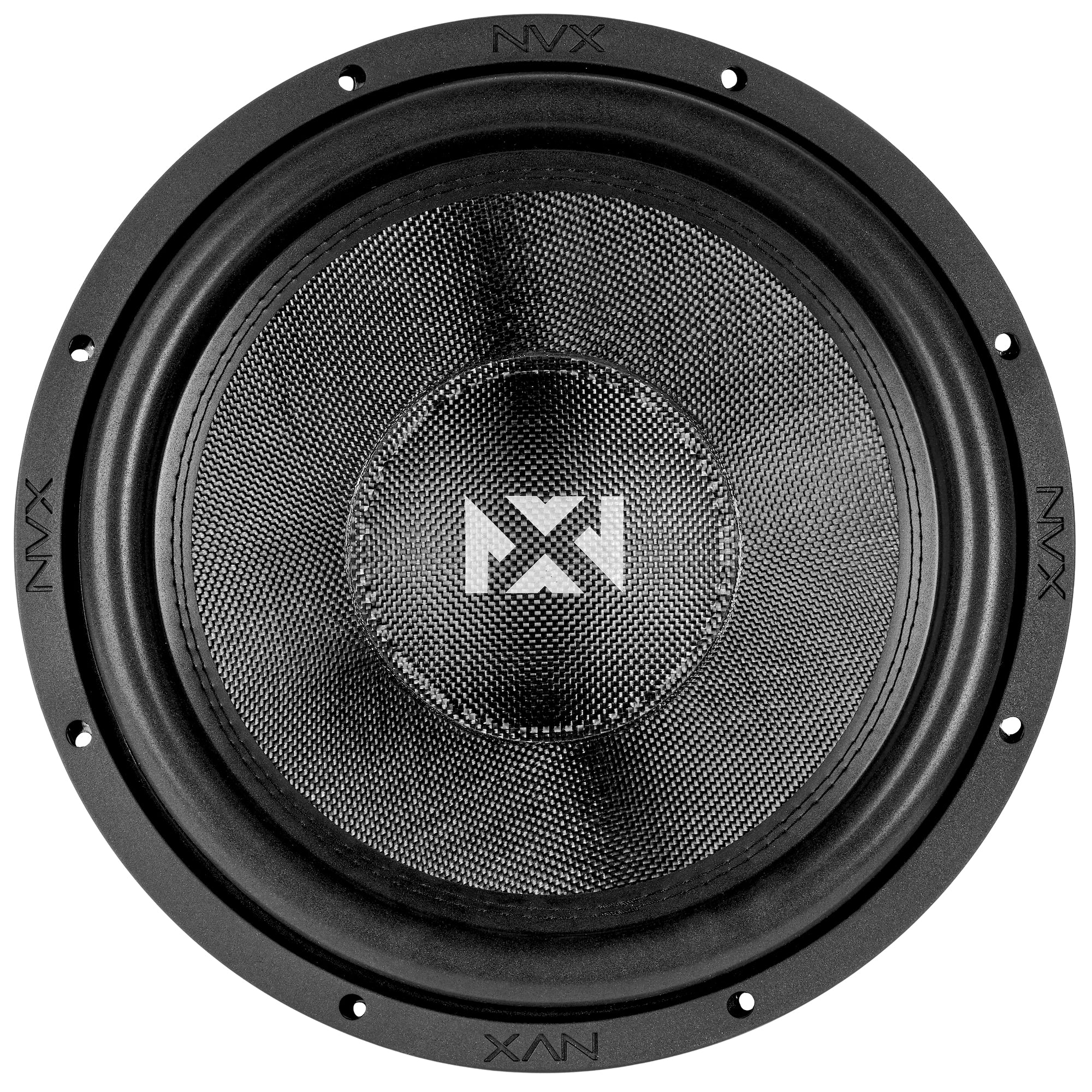

• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching

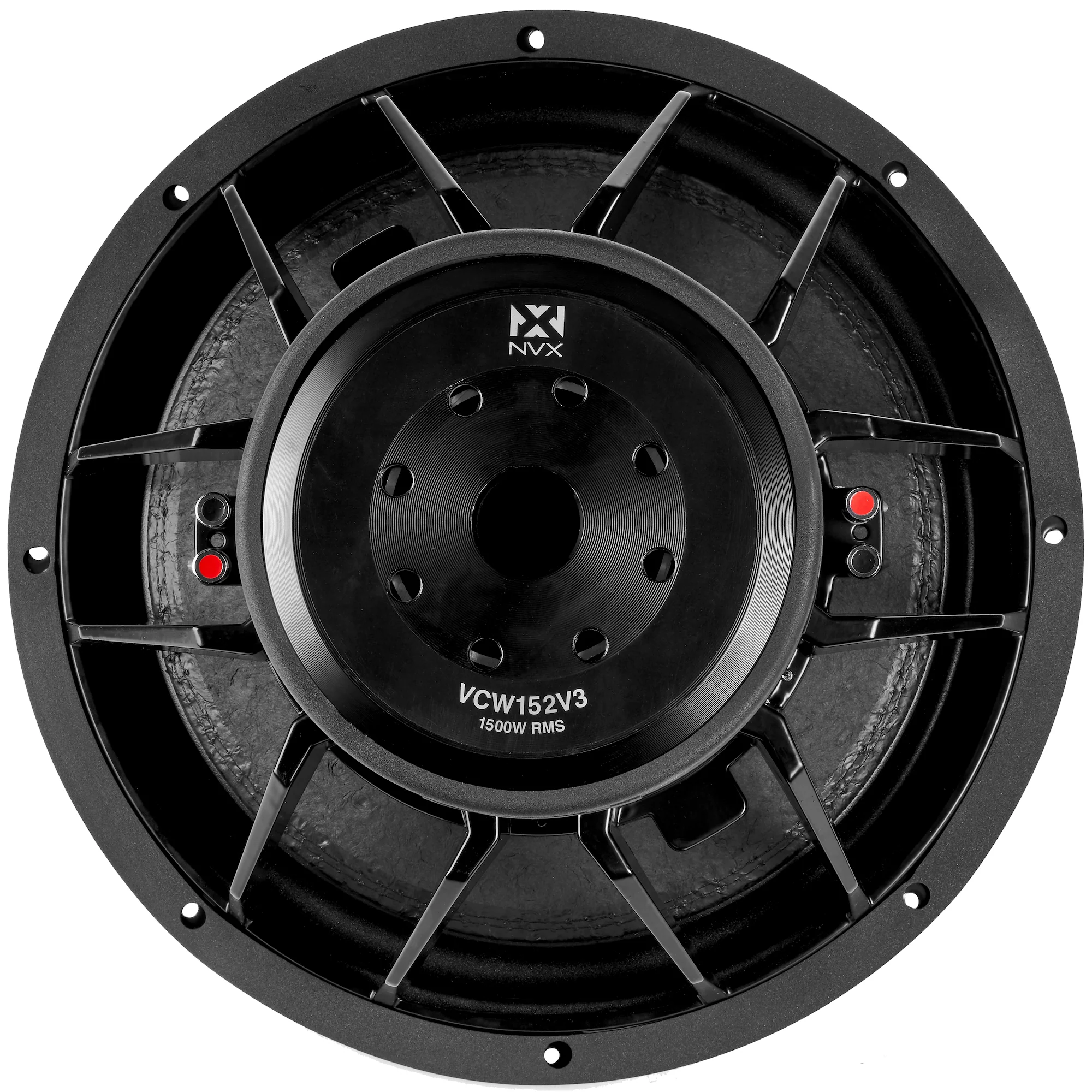

• Die cast aluminum vented basket

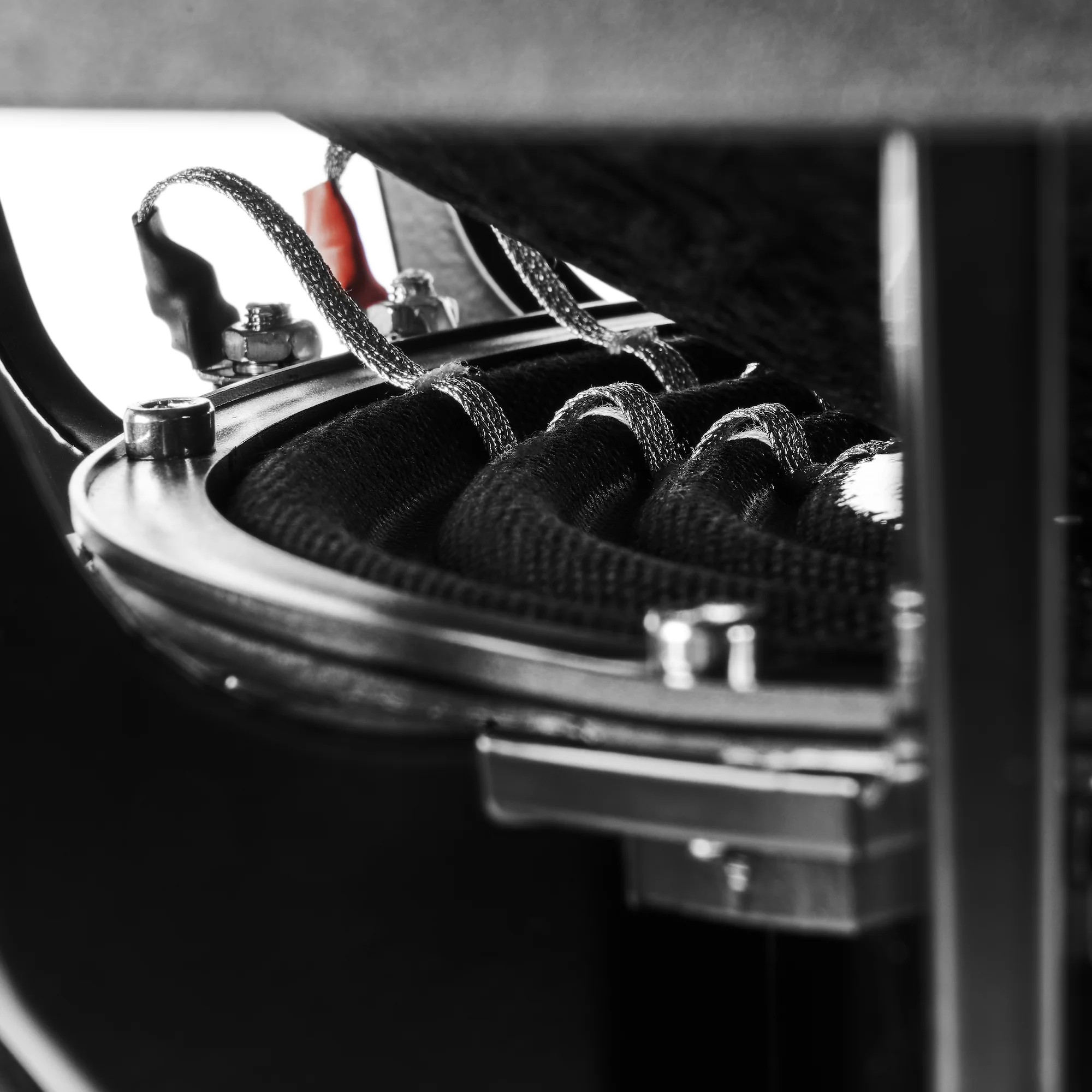

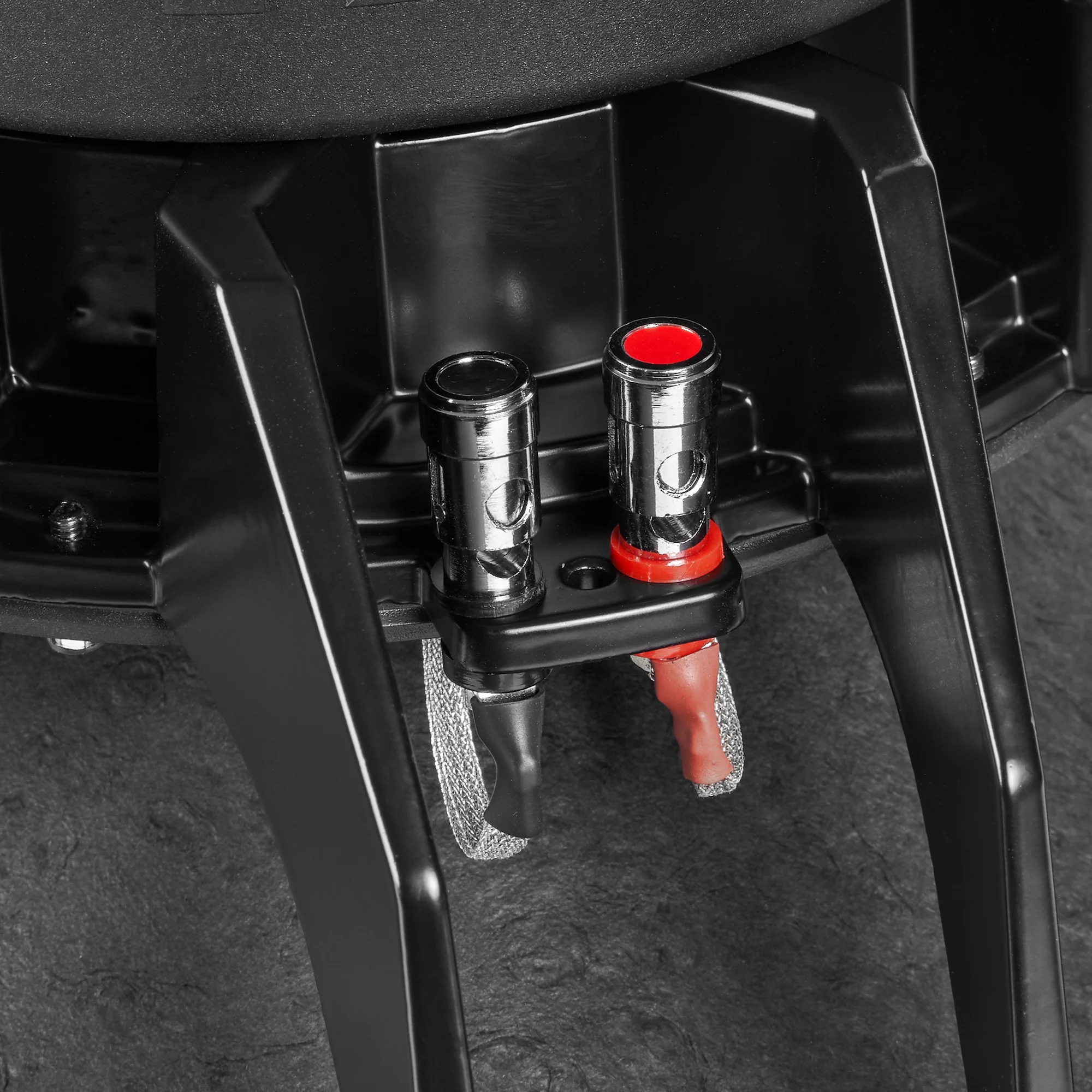

• Dual progressive-roll spiders with integrated flat-braided leads
• 3" 4-Layer High Temperature Black Aluminum Voice coil
• Optimized high-velocity pole vent

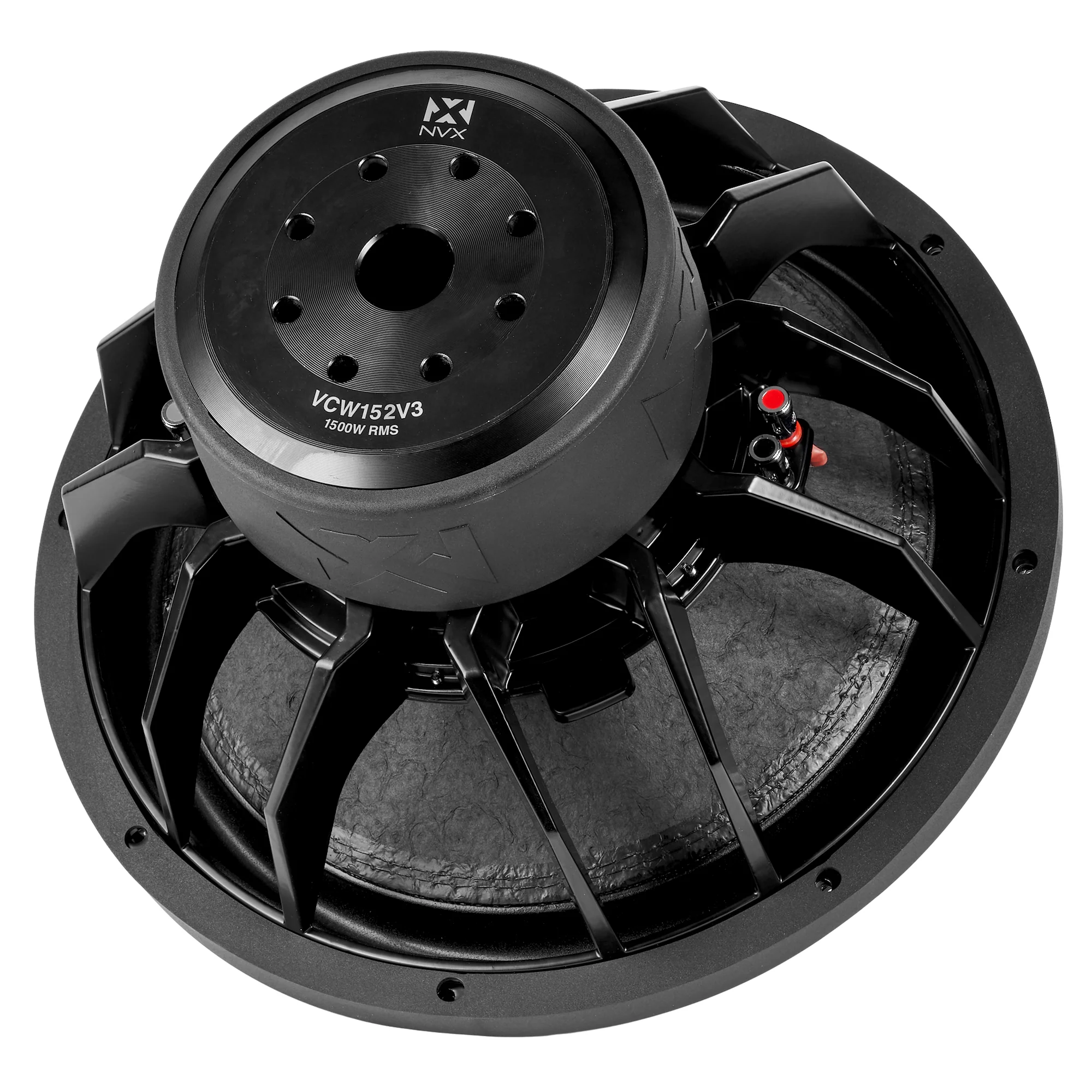

• One-piece T-Yoke with integrated gap venting
• 202 oz. Triple Stacked High Energy Y35 Ferrite with protective rubber boot
• 23 mm Xmax (one-way) for massive air movement
• Frequency Response: 20 - 200 Hz
• Resonance Frequency (Fs): 29.30 Hz
• Sensitivity: 88 dB (1W/1m)
• Optimal sealed box volume: 2 cubic feet
• Optimal ported box volume: 3 cubic feet

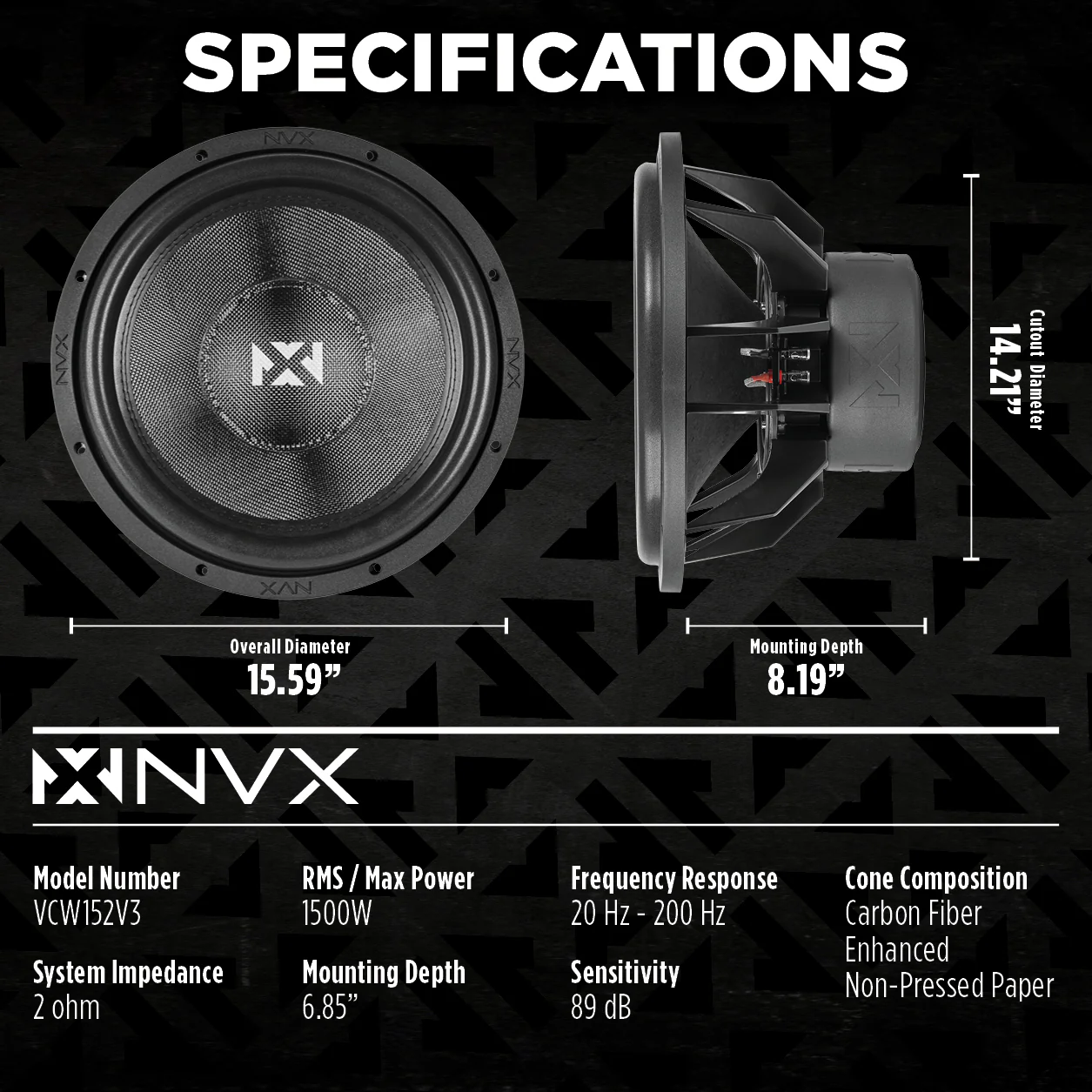

• Top-mount depth: 8.19"
• Cutout diameter: 14.21"
• CTA-2031 Compliant
• 1-year Warranty from the Original Purchase Date

VCW152v3 owner's manual
